EspañolGEA Diessel GmbH – Used process vessels and mixing tanks
Behälter KG offers a wide selection of high-quality used process and storage tanks from the long-established manufacturer Diessel from Hildesheim, now operating as GEA Diessel GmbH. Diessel is one of the oldest tank manufacturers in the German-speaking region and is known for durable, functionally designed process vessels. As a specialist supplier of used industrial tanks, we stock not only well-maintained Diessel tanks but also an inventory of more than 2,500 used and factory-new stainless steel tanks. All vessels are immediately available from our Bremen warehouse and can be shipped worldwide. read more...
Products
- double jacket: 3,0 bar
- max. excess pressure: 3,5 bar
- vacuum: 1,0 bar
- insulation
- agitator: magnetic mixer
- output speed: 339 rpm
- power: 0.55 KW
- documents available:
- total height: 2.100 mm
- cylindrical height: 630 mm
- diameter inside: 740 mm
- diameter outside: 900 mm
6,500.00 €
- double jacket: 6,0 bar
- max. excess pressure: 3,0 bar
- vacuum: 1,0 bar
- insulation
- agitator: agitator flange
- total height: 1.550 mm
- diameter inside: 740 mm
- diameter outside: 880 mm
- max. excess pressure: 3,0 bar
- vacuum: 1,0 bar
- agitator: agitator flange
- total height: 1.650 mm
- cylindrical height: 430 mm
- diameter inside: 800 mm
- double jacket
- max. excess pressure: 3,0 bar
- vacuum: 1,0 bar
- insulation
- total height: 2.400 mm
- cylindrical height: 1.200 mm
- diameter inside: 690 mm
- diameter outside: 850 mm
- double jacket: 3,0 bar
- max. excess pressure: 3,0 bar
- vacuum: 1,0 bar
- insulation
- documents available:
- total height: 2.300 mm
- cylindrical height: 900 mm
- diameter inside: 986 mm
12,500.00 €
- double jacket: 3,0 bar
- max. excess pressure: 2,0 bar
- vacuum: 1,0 bar
- insulation
- agitator: agitator flange
- documents available:
- total height: 2.200 mm
- cylindrical height: 990 mm
- diameter inside: 1.040 mm
- diameter outside: 1.200 mm
- max. excess pressure: 2,0 bar
- vacuum: 1,0 bar
- insulation
- total height: 2.200 mm
- diameter inside: 1.040 mm
- diameter outside: 1.140 mm
- double jacket: 3,0 bar
- max. excess pressure: 2,0 bar
- vacuum: 1,0 bar
- insulation
- agitator: magnetic mixer
- output speed: 394 rpm
- power: 0.75 KW
- documents available:
- total height: 2.600 mm
- cylindrical height: 875 mm
- diameter inside: 988 mm
- diameter outside: 1.154 mm
- insulation
- agitator: propeller
- output speed: 175 / 365 rpm
- power: 0.2 / 0.92 KW
- total height: 2.350 mm
- cylindrical height: 1.100 mm
- diameter inside: 1.100 mm
- diameter outside: 1.200 mm
Price on request
- double jacket: 4,0 bar
- max. excess pressure: 4,0 bar
- vacuum: 1,0 bar
- insulation
- agitator: propeller
- double jacket: 3,0 bar
- max. excess pressure: 3,0 bar
- vacuum: 1,0 bar
- insulation
- documents available:
- total height: 2.350 mm
- cylindrical height: 750 mm
- diameter inside: 1.188 mm
- diameter outside: 1.347 mm
- double jacket: 3,0 bar
- max. excess pressure: 3,0 bar
- vacuum: 1,0 bar
- agitator: blade agitator
- output speed: 49 rpm
- power: 0.75 KW
- documents available:
- total height: 2.850 mm
- diameter inside: 1.188 mm
- diameter outside: 1.250 mm
- double jacket: 2,0 bar
- max. excess pressure: 3,0 bar
- vacuum: 1,0 bar
- insulation
- agitator: propeller
- output speed: 440 / 940 rpm
- power: 0.33 / 1.85 KW
- documents available:
- total height: 2.400 mm
- cylindrical height: 750 mm
- diameter inside: 1.180 mm
- diameter outside: 1.350 mm
- double jacket: 3,0 bar
- max. excess pressure: 0,5 bar
- vacuum: 1,0 bar
- insulation
- agitator: agitator flange
- total height: 2.150 mm
- diameter inside: 1.280 mm
- diameter outside: 1.420 mm

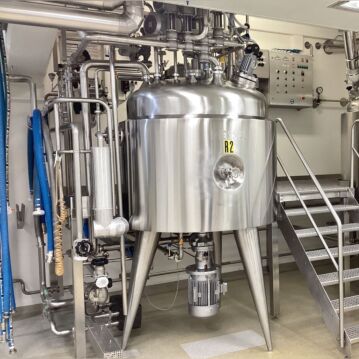

1540 liter heatable/coolable process tank made of stainless steel 304 with 2 agitators & homogenizer
Price on request
- double jacket: 6,0 bar
- max. excess pressure: 3,0 bar
- insulation
- agitator: propeller
- double jacket
- insulation
- agitator: blade agitator
- output speed: 6.8 / 14 rpm
- power: 2.6 / 4.4 KW
- total height: 3.650 mm
- cylindrical height: 1.800 mm
- diameter inside: 1.900 mm
- diameter outside: 2.050 mm
Where are Diessel stainless steel tanks used and what distinguishes them?
Diessel is primarily known for hygienic process vessels, agitator tanks and pharmaceutical tanks. The equipment is typically used wherever clean, easy-to-clean stainless steel systems are required for storage, mixing and batch processes – particularly in the , the and in .
Many Diessel vessels are characterized by stainless steel construction with process-optimized nozzle configurations and hygienic design, making them well suited for CIP-capable processes and repeatable cleaning concepts. On the used market, heated or cooled versions as well as pressure-rated designs are frequently available, making them attractive for temperature-controlled or closed processes. Suitability depends largely on material grade, surface requirements, operating pressure and temperature, as well as the specific agitator and manway configuration.
Historically, Diessel has been integrated into the GEA Group; however, production continues in part in Hildesheim. As a result, both older “Diessel” vessels and equipment classified within the GEA process and hygienic technology portfolio can be found on the market. For buyers of used Diessel tanks, technical documentation (e.g. data sheets, drawings, inspection records) is therefore essential in order to reliably assess process parameters and integration effort.
Buy used Diessel stainless steel tanks & vessels
Over 2,500 used stainless steel tanks, and are available from stock at Behälter KG. We not only offer used Diessel tanks, but also vessels from other well-known manufacturers such as , or .
Purchasing used Diessel vessels offers economic advantages, especially for industrial users. Compared to new stainless steel tank construction, investment costs can be significantly reduced while maintaining proven industrial quality. In addition, used vessels are available at short notice and enable fast project implementation.
Take a look at our to benefit from the largest selection in Europe when purchasing a used stainless steel tank.
For questions about our products or for professional advice, please feel free to contact us by phone or use our contact form.
