Sku 8581

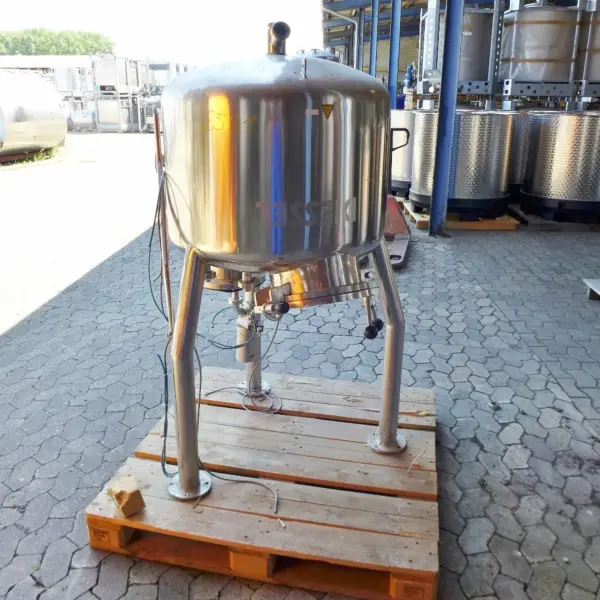

324 liter pressure tank, Aisi 316

€1,900.00 €2,261.00  incl. VAT
Price per piece, excl. VAT
1 on Stock

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
Manufacturer
Diessel
location
Bremen
condition
used
Vessel
volume
324 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
134 °C
construction
hanging
Technical Characteristics
diameter inside
800 mm
cylindrical height
430 mm
total height
1.650 mm
Wall thickness lower bottom
2.8 mm
wall thickness cylinder
2.9 mm
wall thickness of upper bottom
3.8 mm
Equipment
nameplate
outlet
DN40 DIN 11851
notice
some residues of previous content
remarks
Tank hanging on 3 "feet" in frame or ceiling; Hand hole diameter approx. 300 mm; Outlet fitting is missing
Material Composition
surface outside
grinded
surface inside
grinded
material in contact w/ medium
AISI316Ti 1.4571
Agitator
agitator
agitator flange
agitator positioning
eccentrically in the upper bottom
