Sku 9816

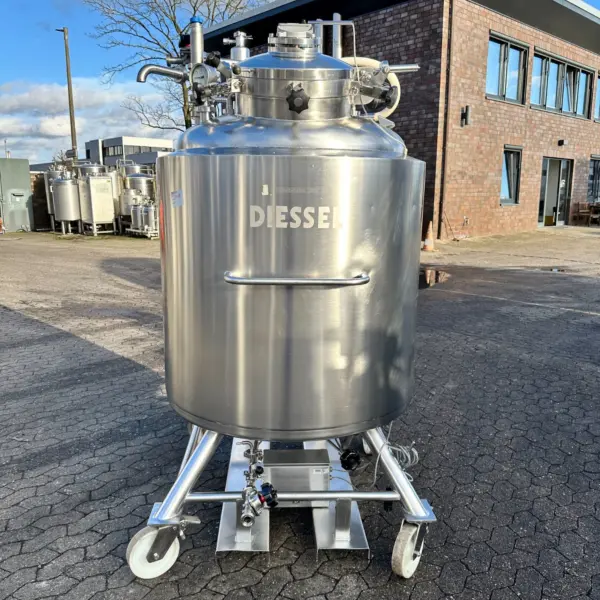

930 liter mobile heat-/coolable pharma processing vessel, Aisi 316
€7,000.00
€8,330.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
Diessel
location
Bremen
condition
used
Vessel
volume
930 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
130 °C
lower bottom
torispherical bottom
upper bottom
torispherical bottom
construction
standing
stand type
moveable on wheels
double jacket
double jacket
available
Volume double jacket
90,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
130 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
986 mm
cylindrical height
900 mm
total height
2.300 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,various documents
manhole
in the upper bottom (Ø 450)
nameplate
technical equipment
spray ball
outlet
DN25 DIN 11851
remarks
Filling pipe inside the tank (see pictures); GEMÜ diaphragm valve at the outlet
latest application
pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material double jacket
AISI 304 1.4301
