Mobile vessels
Behälter KG offers a wide range of high-quality mobile process- and storage vessels, positioned on wheels or on a forklift base. Sorted by volume in ascending order, you will find a wide selection of used and brand-new mobile tanks & vessels below - all items are immediately available from stock and can be shipped worldwide.
- 954212 liter pressure tank, Aisi 316 €390.00
- max. excess pressure:10,7 bar
- total height: 620 mm
- cylindrical height: 360 mm
- diameter inside: 230 mm
- 8412Fryma Koruma VME-12/C homogenizing mixer €27,000.00
- double jacket: 4,0 bar
- max. excess pressure:2,5 bar
- documents available:
- 867660 (2 x 30) liter mobile double tank, Aisi 304 €2,450.00
- max. excess pressure:2,0 bar
- total height: 1.350 mm
- total width: 850 mm
- total length: 1.820 mm
- diameter inside: 520 mm
- 631380 liter pressure tank, AISI 316 €1,650.00
- max. excess pressure:2,0 bar
- total height: 1.230 mm
- total width: 560 mm
- total length: 1.230 mm
- diameter inside: 400 mm
- S94486Werksneuer 100 Liter heiz-/kühlbarer Behälter aus V4A (Rührwerk gegen Mehrpreis möglich) €9,695.00
- double jacket: 3,0 bar
- insulation
- agitator:agitator flange
- documents available:
- total height: 1.350 mm
- cylindrical height: 500 mm
- diameter outside: 580 mm
- 9260100 liter heat-/ coolable tank, Aisi 316 €1,900.00
- double jacket: 6,0 bar
- insulation
- total height: 1.350 mm
- total width: 860 mm
- total length: 1.050 mm
- diameter inside: 645 mm
- diameter outside: 820 mm

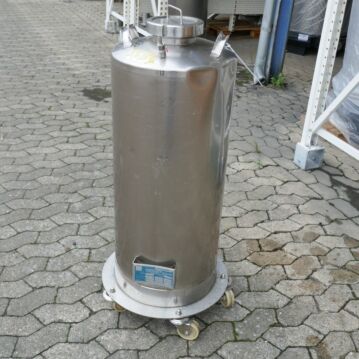

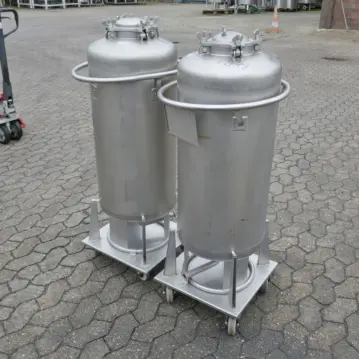

- 8684100 liter mobile pressure tank, Aisi 316 €900.00
- max. excess pressure:2,0 bar
- total height: 1.170 mm
- cylindrical height: 750 mm
- diameter inside: 390 mm
- 8678100 liter mobile tank, Aisi 316 €550.00
- total height: 1.150 mm
- cylindrical height: 750 mm
- diameter inside: 390 mm
- S16864120 liter mobile heat-/coolable tank, Aisi 304 €1,995.00
- double jacket
- insulation
- total height: 1.200 mm
- cylindrical height: 650 mm
- diameter inside: 500 mm
- 8639120 liter heat-/coolable pressure tank, Aisi 316 €3,900.00
- double jacket: 1,0 bar
- max. excess pressure:1,5 bar
- agitator:magnetic mixer
- total height: 1.350 mm
- cylindrical height: 750 mm
- diameter inside: 400 mm
- diameter outside: 500 mm
-
- 6311130 liter pressure tank, AISI 316 €2,150.00
- max. excess pressure:3,0 bar
- vacuum:1,0 bar
- documents available:
- cylindrical height: 488 mm
- diameter inside: 508 mm
- S11005Brand new 150 liter heat-/coolable mobile vessel, Aisi 316 (agitator optional, upon request) €8,680.00
- double jacket: 3,0 bar
- insulation
- agitator:agitator flange
- documents available:
- total height: 1.450 mm
- cylindrical height: 375 mm
- diameter inside: 406 mm
- diameter outside: 700 mm
- 9722170 liter heat-/coolable pressure tank, Aisi 304 €1,600.00
- double jacket
- max. excess pressure:3,2 bar
- vacuum:1,0 bar
- total height: 1.250 mm
- diameter inside: 690 mm
- 8887200 liter open tank, Aisi 316 €950.00
- total height: 1.020 mm
- total width: 750 mm
- total length: 1.250 mm
- 7095200 liter Terlet anchor agitator mixing tank, Aisi 316 €4,950.00
- insulation
- agitator:anchor agitator
- output speed:16.5 / 32 rpm
- power:0.88 / 1.3 KW
- total height: 1.700 mm
- cylindrical height: 580 mm
- diameter inside: 790 mm
- diameter outside: 920 mm
- 8681220 liter pressure tank, Titanium (CP_Ti) €1,850.00
- max. excess pressure:2,0 bar
- total height: 1.250 mm
- diameter inside: 590 mm
- 8338250 liter trolley, Aisi 304 €250.00
- total height: 830 mm
- total width: 650 mm
- total length: 1.070 mm
-
- double jacket: 3,0 bar
- max. excess pressure:3,0 bar
- vacuum:1,0 bar
- insulation
- agitator:propeller
- output speed:71 - 640 rpm
- power:0.34 KW
- EX-proof:
- total height: 2.000 mm
- cylindrical height: 470 mm
- diameter inside: 690 mm
- diameter outside: 830 mm
- 8140280 liter heat-/coolable pressure tank, Aisi 316 €10,500.00
- double jacket: 3,0 bar
- max. excess pressure:3,5 bar
- vacuum:1,0 bar
- insulation
- agitator:magnetic mixer
- output speed:339 rpm
- power:0.55 KW
- documents available:
- total height: 2.100 mm
- cylindrical height: 630 mm
- diameter inside: 740 mm
- diameter outside: 900 mm
- S16630300 Liter Druckbehälter aus V2A €3,995.00
- max. excess pressure:4,0 bar
- vacuum:1,0 bar
- total height: 1.700 mm
- cylindrical height: 650 mm
- total width: 762 mm
- total length: 780 mm
- diameter outside: 720 mm
- S16631300 liter pressure vessel, AISI304 €3,995.00
- max. excess pressure:3,0 bar
- vacuum:1,0 bar
- total height: 1.665 mm
- cylindrical height: 650 mm
- diameter outside: 720 mm
- S16603300 liter mobile pressure vessel, AISI304 €1,999.00
- max. excess pressure:3,0 bar
- vacuum:1,0 bar
- total height: 1.700 mm
- cylindrical height: 650 mm
- diameter outside: 720 mm
- 9502300 liter mobile tank, Aisi 304 €700.00
- total height: 1.620 mm
- cylindrical height: 990 mm
- diameter inside: 630 mm
Which stainless steel mobile vessel design variants exist?
Mobile vessels primarily differ in terms of its stand type, which depends mainly on the dimensions and weight of the vessel. The following design types of mobile vessels are most common:
- Mobile stainless-steel vessels positioned on wheels: the most common design, used for small pharmaceutical preparation / batch vessels or pilot plant vessels; high flexibility through simple internal transportation (this design is practical up to a maximum of 1000-1500 liters volume)
- Mobile stainless-steel vessel positioned on a forklift base: can be accessed 2 or 4-sided by a forklift, therefore easy to handle; advantageous for volumes that are difficult to move on wheels
- Mobile transport container: positioned on a galvanized transport frame, ideal for road transport
Mobile vessels positioned on a frame with wheels are usually equipped with a total of 4 wheels, 2 castor and 2 fixed wheels. It should be noted that for application fields in hazardous areas (ex-zone), the wheels need to have a discharge capacity. For applications with increased specific weights, it likewise needs to be verified that the load capacity of the wheels is sufficiently high.
Benefits of mobile stainless-steel vessels
Behälter KG offers a wide range of used stainless steel mobile vessel and transport tanks – all of them are immediately ready for worldwide delivery and affordable in comparison to a brand-new custom-made product.
Mobile vessels are often constructed very manually and customer-specific, since the reliable construction on a suitable frame and wheels can hardly be automated. Also, most mobile vessels are designed for sterile use as laboratory vessels or pharma batch vessels. As a result, many second-hand mobile vessels are equipped with electropolished surfaces, high-quality stirring technology or GMP-compliant fittings. These otherwise very expensive characteristics can thus be purchased at a fraction of the original cost, by selecting a second-hand stainless-steel vessel.
Various mobile vessels can also be used as cooking kettles or pilot plant vessels due to an electric heating jacket or a double jacket for hot water. As we source almost exclusively used pharmaceutical mobile vessels in the German-speaking region, our second-hand vessels have a long service and demonstrate excellent material processing and manufacturing quality.
Brand new mobile vessels and transport tanks - standardized product groups
We offer several high-quality standardized mobile vessels and transport tanks, that we pre-produce and keep in stock for short lead times. This includes both vessels positioned on wheels, as well as on a forklift base. These are our most popular standardized product groups:
- SDE flexmix positioned on forklift-base: open mobile vessel, 4-sided accessible for forklifts (300 - 1150 liter)
- SDE flexmix positioned on wheels: open mobile vessel, positioned on 4 solid wheels (300 - 1150 liter)
- Transportable container: closed container, stackable, in a galvanized transport frame (500 – 1500 liter)
All mobile vessels & tanks are also available heated, insulated or with suitable mixing technology. We can offer various types directly from stock, otherwise with short delivery times from our factory.
Custom-made brand-new mobile vessels
For specific requirements, we offer custom-made mobile vessels and transport tanks – at an attractive price point and with short delivery times. We would be happy to make you an offer according to your specifications, contact us by using our .
Our production range covers the whole range of mobile vessels, whereby we can rely on over 50 years manufacturing experience in stainless steel tanks. Design options include for example:
- Mobile stainless-steel vessels positioned on wheels (also double-walled or with agitator, if required)
- Mobile stainless-steel vessels positioned on a forklift base (also double-walled, pressure-resitant or with agitator)
- Agitated mobile vessels (electric trace heating, thermo oil jacketed or steam-heated)
- Stainless steel IBC containers with UN-approval
We would be delighted to consult you on your mobile vessel requirements and on any other questions that might potentially be present.
