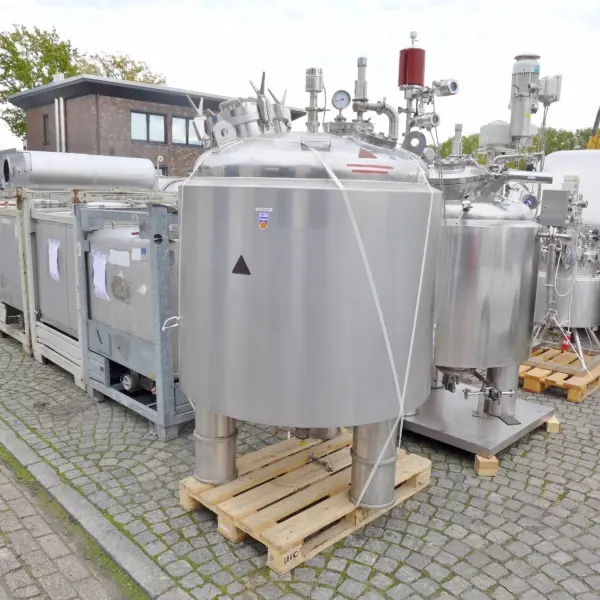

1229 liter heat-/coolable pressure tank, Aisi 316
€17,500.00
incl. VAT
€20,825.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Hersteller
Diessel
location
Bremen
condition
used
Vessel
volume
1.229 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
150 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
88,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
insulation thickness
50 mm
Technical Characteristics
diameter inside
1.188 mm
diameter outside
1.347 mm
cylindrical height
750 mm
total height
2.350 mm
Wall thickness lower bottom
5.7 mm
wall thickness cylinder
8 mm
wall thickness of upper bottom
6.5 mm
Equipment
Technical documentation
drawing,certificate of inspection
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
crane eyes
outlet
30 mm
remarks
Tank was rebuilt in 2011; further technical documents available
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
