SDE-Flexmix: mobile mixing tanks

The SDE Flexmix series is one of our best-selling mixing tanks, due to its mobile design and versatile configuration options. Available in three practical sizes: 300, 550 and 1150 liter. Choose between the handy forklift-base (polyethylene) or 4 robust wheels as tank base. All tank options are also available with a thermoplate double jacket for heating/cooling with water or an electric heating jacket.

Items 1-24 of 27

Page
Set Descending Direction
per page

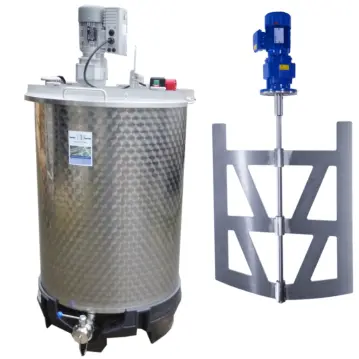

    • agitator:anchor agitator
    • output speed:0-23 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.780 mm
    • cylindrical height: 1.034 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    3 pieces on stock

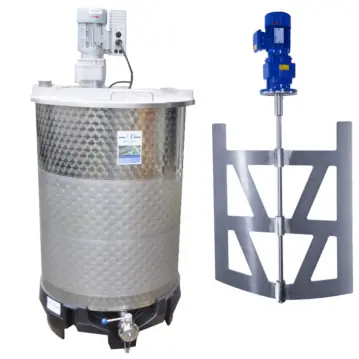

    • double jacket: 5,0 bar
    • agitator:anchor agitator
    • output speed:0-23 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.780 mm
    • cylindrical height: 1.034 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    2 pieces on stock

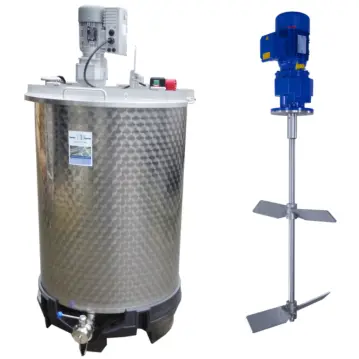

    • agitator:blade agitator
    • output speed:0 - 85 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.850 mm
    • cylindrical height: 1.034 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    1 on Stock

    • double jacket: 5,0 bar
    • agitator:blade agitator
    • output speed:0 - 85 rpm
    • power:0.75 KW
    • documents available:
    • total height: 1.750 mm
    • cylindrical height: 1.034 mm
    • total width: 873 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    1 on Stock

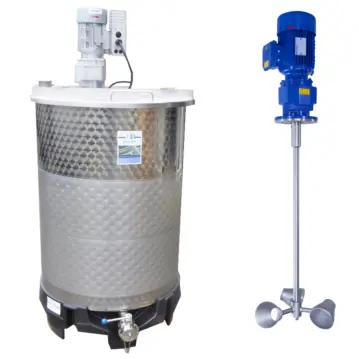

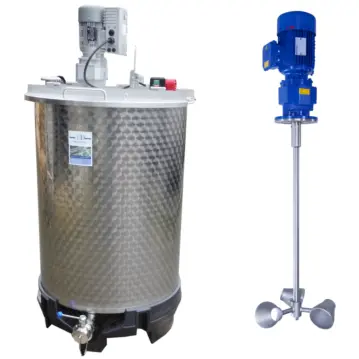

    • agitator:cup stirrer
    • output speed:0 -190 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.780 mm
    • cylindrical height: 1.034 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    1 on Stock

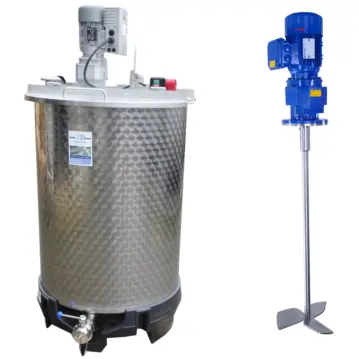

    • agitator:propeller
    • output speed:0-275 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.780 mm
    • cylindrical height: 1.034 mm
    • total width: 873 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    2 pieces on stock

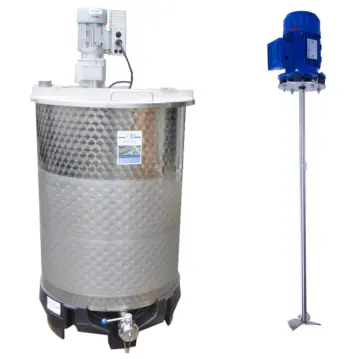

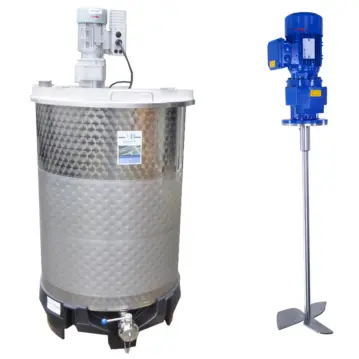

    • double jacket: 5,0 bar
    • agitator:propeller
    • output speed:0-275 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.780 mm
    • cylindrical height: 1.034 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    1 on Stock

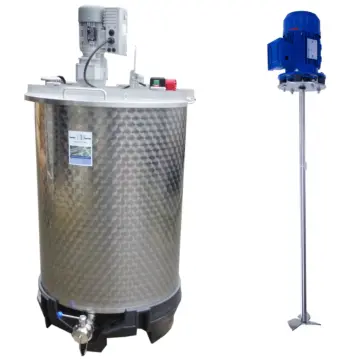

    • agitator:propeller
    • output speed:0-1500 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.620 mm
    • cylindrical height: 1.034 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    1 on Stock

    • double jacket: 5,0 bar
    • agitator:propeller
    • output speed:0-1500 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.620 mm
    • cylindrical height: 1.034 mm
    • total width: 873 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    1 on Stock

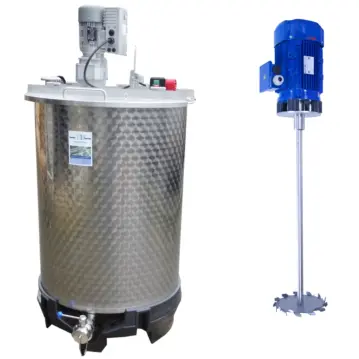

    • agitator:dissolver
    • output speed:1.410 rpm
    • power:4.0 KW
    • documents available:
    • total height: 1.800 mm
    • cylindrical height: 1.034 mm
    • total width: 873 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    Delivery time on request

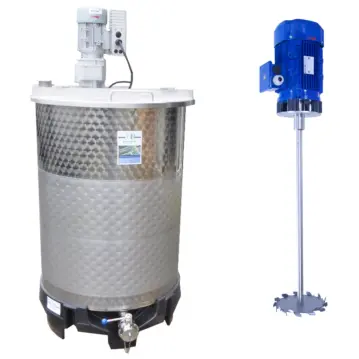

    • double jacket: 5,0 bar
    • agitator:dissolver
    • output speed:1.410 rpm
    • documents available:
    • total height: 1.800 mm
    • cylindrical height: 1.034 mm
    • total width: 873 mm
    • diameter inside: 820 mm

    Price per piece, excl. VAT

    Delivery time on request

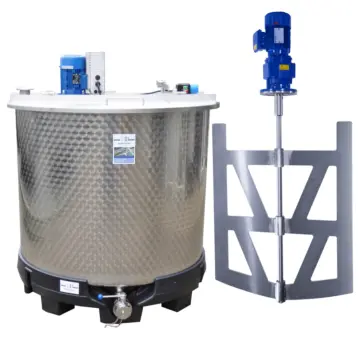

    • agitator:anchor agitator
    • output speed:0-12 rpm
    • power:0.75 KW
    • documents available:
    • total height: 1.720 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    2 pieces on stock

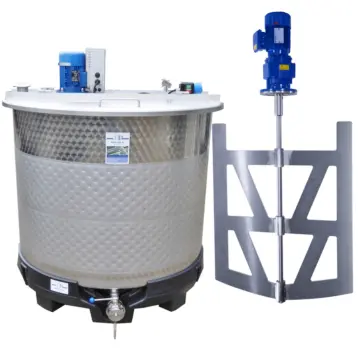

    • double jacket: 5,0 bar
    • agitator:anchor agitator
    • output speed:0-12 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.720 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

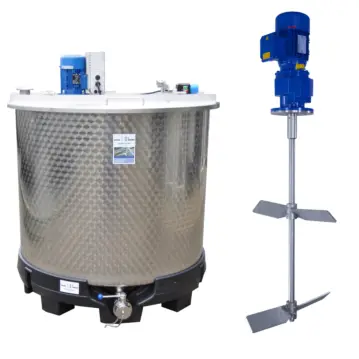

    • agitator:blade agitator
    • output speed:0 - 85 rpm
    • power:0.75 KW
    • documents available:
    • total height: 1.750 mm
    • cylindrical height: 938 mm
    • total width: 1.268 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    1 on Stock

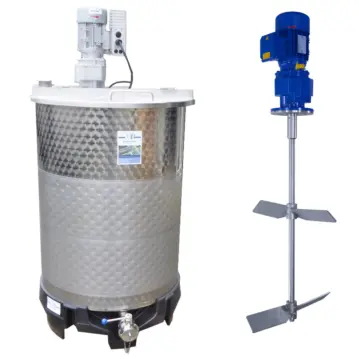

    • double jacket: 5,0 bar
    • agitator:blade agitator
    • output speed:0 - 85 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.750 mm
    • cylindrical height: 938 mm
    • total width: 1.268 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    1 on Stock

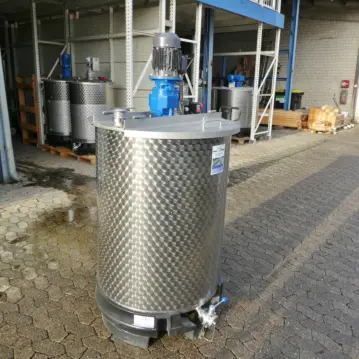

    • agitator:cup stirrer
    • output speed:0-190 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.680 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

    • double jacket: 5,0 bar
    • agitator:cup stirrer
    • output speed:0-190 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.680 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    1 on Stock

    • agitator:propeller
    • output speed:0-275 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.680 mm
    • cylindrical height: 938 mm
    • total width: 1.268 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    1 on Stock

    • double jacket: 5,0 bar
    • agitator:propeller
    • output speed:0-275 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.680 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

    • agitator:propeller
    • output speed:0-1500 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.550 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

    • double jacket: 5,0 bar
    • agitator:propeller
    • output speed:0-1500 rpm
    • power:0,75 KW
    • documents available:
    • total height: 1.550 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

    • agitator:dissolver
    • output speed:1.410 rpm
    • power:4,0 KW
    • documents available:
    • total height: 1.720 mm
    • cylindrical height: 938 mm
    • total width: 1.268 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

    • double jacket: 5,0 bar
    • agitator:dissolver
    • output speed:1.410 rpm
    • power:4.0 KW
    • documents available:
    • total height: 1.650 mm
    • cylindrical height: 938 mm
    • total width: 1.268 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

    • double jacket: 5,0 bar
    • agitator:cup stirrer
    • output speed:0 - 196 rpm
    • power:0.75 KW
    • documents available:
    • total height: 1.680 mm
    • cylindrical height: 938 mm
    • diameter inside: 1.200 mm

    Price per piece, excl. VAT

    Delivery time on request

Items 1-24 of 27

Page
Set Descending Direction
per page

What advantages does the SDE Flexmix offer?

  • Short delivery times thanks to a large stock
  • Pre-wired and ready to be plugged in, including CE
  • Polyethylene base (forklift ready)
  • Dished bottom for complete emptying
  • Massive agitator support traverse (2 hinged lids)
  • Heat-/cooling jacket: +5 bar (80° C)
  • Getriebebau NORD frequency inverter 400V IP55
  • Gearbox with stainless steel sealing flange, oil spill indicator and food-compatible Klüber oil filling
  • Extensive documentation
  • 100% “made in Germany”
  • Double effective safety valve made of stainless steel
  • Robust stainless-steel outlet valve
  • Optional: tank in AISI 316

The SDE Flexmix is suitable as mobile mixing tank for all industries and applications. Due to the two large hinged lids, the tank can always be easily serviced and cleaned. As the inside of the tank is mirror polished and has a very low surface roughness (Ra < 0,2 µm), the mixing tank has been designed for the highest hygienic standards.

Thanks to the versatile available stirring technology, the mixing tank can also be converted universally for different purposes. For every tank, we provide the respective CE marking, declaration of conformity, assembly and operating instructions. Proven Behälter KG quality since 1965.

 width=

The container can be moved flexibly with the forklift or pallet truck



Thermoplate double jacket on the cylinder of the container

How is the heating / cooling jacket operated?

The optional Thermoplate double jacket of the SDE Flexmix is welded onto the cylinder of the tank. The jacket has an operating pressure of +5 bar and is equipped with two R1“ connections for the inlet and outlet of the temperature control medium. The tank is designed for cooling with ice water or glycol or for heating with warm water or thermal oil (max. 80 °C). Please note that the Thermoplate jacket must be connected to an on-site heating / cooling source that is not included in the scope of delivery. Alternatively, we also offer an electric heating jacket for the SDE Flexmix, contact our sales department for additional information.

Which agitator technology can be installed on the SDE Flexmix?

We offer you the appropriate agitator technology for all stirring tasks and viscosity levels. For the SDE Flexmix, we recommend the following agitator types, which we usually offer directly from stock:

  • High-speed propeller agitator: With the high-speed propeller agitator, low-viscosity media can be homogenized turbulently. The speed ranges up to 1500 rpm but can be reduced through the integrated frequency inverter. Inexpensive design, as no gearbox is built in. Designed for media up to 600 mPas.
  • Slow-running propeller agitator: With a slow-running propeller agitator, low-viscosity media can be gently homogenized, e.g. dairy products. The lower speed is made possible by a high-quality gearbox. The speed ranges up to 250 rpm but can be variably reduced through the integrated frequency inverter. Designed for media up to 1000 mPas.
  • Blade agitator: With the blade agitator, both aqueous and medium-viscosity media can be mixed efficiently and gently, at a variable speed of up to 62 rpm. The two eccentrically positioned blade elements ensure a high circumferential speed due to the large diameter. Designed for media up to 5000 mPas.
  • Cup stirrer: The cone-shaped cup stirrer is ideally suited for gentle homogenization and degassing of demanding media. Centrally positioned on the flat traverse lid, the cup stirrer ensures gentle and efficient mixing even at low speeds of up to 190 rpm by generating enough flow. This leads to an energy-saving stirring process despite a very low circumferential speed. Several process-related advantages are the result: a very low vortex formation, no air-intake into the product and no foam formation. The shear forces transferred into the medium are also very low with a cup stirrer. Proven areas of application for the cup stirrer include uniform mixing (homogenizing), admixing of additives as well as eliminating air bubbles inside the product (degassing). Designed for media up to 3000 mPas.
  • Dissolver: The dissolver is our most powerful standard agitator and is therefore supplied with a 4.0 kW motor. At a high speed of 1400 rpm, it can be used for dispersion, emulsification, solid and wet grinding. The dissolver's toothed stirring disc generates high shear forces during the mixing process, which can break up the finest particles. Due to its specific shape, the dissolver disc makes generates a substantial energy input into the product. The dissolver agitator is not equipped with a frequency converter as standard but can be offered with an external converter upon request. Designed for media up to 3000 mPas.
  • Anchor agitator (grid agitator / cream mixer): Viscous media such as honey or glue can be gently mixed with the anchor agitator. Installed centrally on the flat traverse lid, the massive anchor agitator element ensures a high circumferential speed at a variable speed of 0 - 12 rpm. Due to the continuous stirring process very near to the bottom and cylindrical part of the tank, the anchor stirrer is also ideal for efficient heat transfer. Teflon wipers can be optionally installed for the anchor agitator. Designed for media up to 10000 mPas.
  • Jet-stream mixer: At a high speed of 1400 rpm, the jet-stream mixer enables efficient mixing with a short stirring time thanks to its innovative rotor-stator technology. Additional advantages are the elimination of sedimentation and air-bubbles inside the product. Designed for media up to 800 mPas.



High-speed propeller agitator up to 600 mPas

Slow-running propeller agitator up to 1000 mPas

Blade agitator up to 5000 mPas

Cup stirrer up to 3000 mPas

Dissolver disc up to 3000 mPas

Anchor agitator up to 10000 mPas

Jet-stream mixer up to 800 mPas

Can the SDE tank also be used without agitator?

Due to its functional and mobile design, the SDE Flexmix stainless steel tank can be used as an inexpensive production and storage tank also without agitator technology. Equipped with a flat traverse cover including two large hinged lids, an economical slip-lid or simply as an open storage vessel without a cover, the SDE tank can be used in a variety of ways.

Simply choose your preferred stand form: either our forklift-ready polyethylene base (tested and proven for many years) or, alternatively at an additional cost, positioned on two fixed and two guided wheels. Of course, we also have suitable outlet fittings for the DN50 DIN11851 outlet, that we can supply you with.



Can also be purchased as an open tank with a slip lid

 width=

Delivered ready to plug in, with contact switches for the two hinged covers

Additional useful remarks regarding the SDE Flexmix

  • Quality promise: with the SDE Flexmix you choose a high-quality product that is completely manufactured in Germany
  • Continuously improved: The SDE Flexmix series has been part of our product offering for over 20 years and we have continuously improved it based on customer feedback
  • Modular system: you can order a different agitator technology for your SDE tank anytime and we also offer tripod agitators specifically designed for the SDE tank
  • Spare parts: most spare parts we can offer you directly from our stock at very short lead-times
