Sku B0102

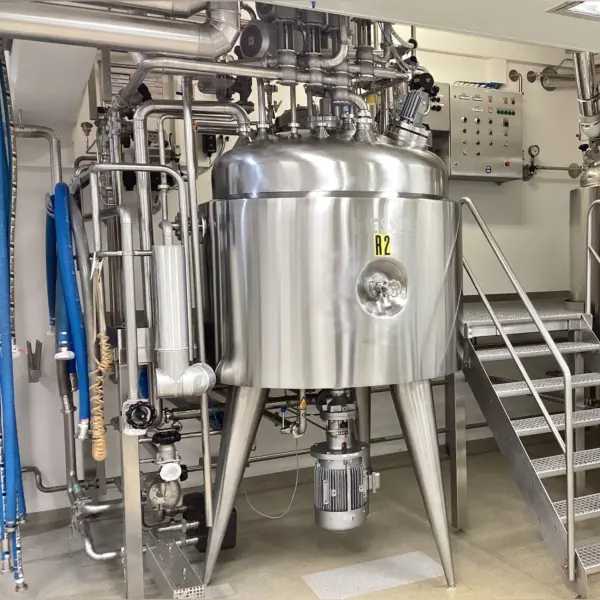

1540 liter heatable/coolable process tank made of stainless steel 304 with 2 agitators & homogenizer
Price on request
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Diessel
location
Outdoor storage
condition
used
Vessel
volume
1.540 liter
max. excess pressure
3,0 bar
max. allowable working temperature
200 °C
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
100,0 liter
max. allowable working overpressure (dj)
6.0 bar
Temperature control cylinder (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Equipment
manhole
in the upper bottom
nameplate
technical equipment
spray ball
remarks
Homogenizer on the underbody (see photos) is included in the scope of delivery
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI304 1.4301
Agitator
agitator
propeller
stirrer
2 stirrer
agitator positioning
on the tank
agitator features
Scrapers are fitted to the anchor agitator (see photos)
Second Agitator
agitator
anchor agitator
agitator positioning
on the tank
