9212

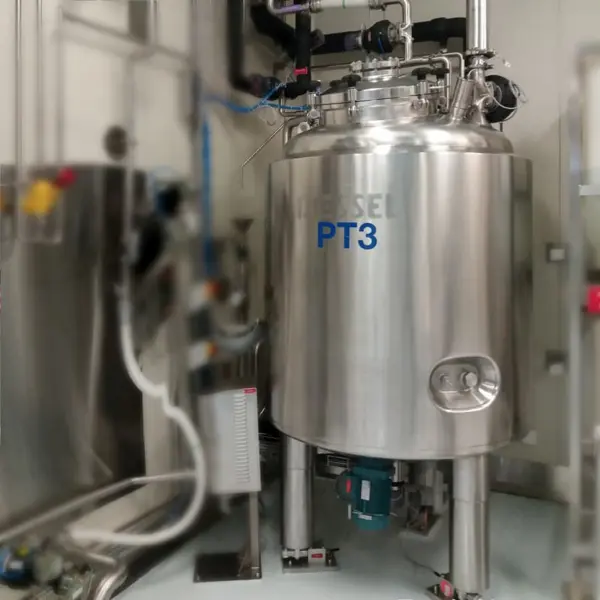

1100 liter heat-/coolable pressure tank, Aisi 316 with magnetic agitator
€19,500.00
incl. VAT
€23,205.00
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
Diessel
location
Bremen
condition
used
Vessel
volume
1.100 liter
vacuum
1,0 bar
max. excess pressure
1,99 bar
max. allowable working temperature
130 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
122,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
130 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
988 mm
diameter outside
1.154 mm
cylindrical height
875 mm
total height
2.600 mm
Wall thickness lower bottom
5.4 mm
wall thickness cylinder
8 mm
wall thickness of upper bottom
4.5 mm
Equipment
Technical documentation
drawing,various documents ,certificate of inspection
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
38 mm
notice
Metallic discolouration inside
remarks
3 loose load cells (no guarantee of functionality) are included in the scope of delivery
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
0.75 KW
output speed
394 rpm
agitator
magnetic mixer
voltage
220/380 Volt
agitator positioning
lower bottom
