Sku 8857

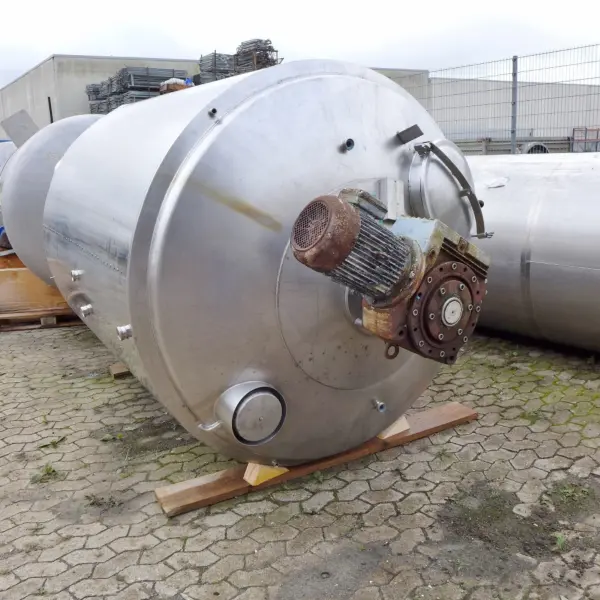

5000 liter heat-/coolable agitator tank, Aisi 304 with blades agitator
€7,400.00 €8,806.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Diessel
location
Bremen
condition
used
Vessel
volume
5.000 liter
lower bottom
flat bottom with slope
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
screwed
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.900 mm
diameter outside
2.050 mm
cylindrical height
1.800 mm
total height
3.650 mm
Equipment
manhole
in the upper bottom (Ø 500)
technical equipment
ventilation, butterfly valve, spray ball
outlet
DN80 DIN 11851
notice
bump at the insulation jacket, scratches inside, Functionality of the double jacket not checked
remarks
Sheet metal cutout in the insulation jacket of the lower floor (underneath Fe plate)
latest application
Agriculture
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
2.6 / 4.4 KW
output speed
6.8 / 14 rpm
agitator
blade agitator
voltage
380 Volt
floor bearing
agitator positioning
centrically in the upper bottom
agitator features
Motor data plate only present on one of the two tanks (we suspect that the agitator data on the second tank are the same or similar); Signs of corrosion on the engine/gear unit
