8065

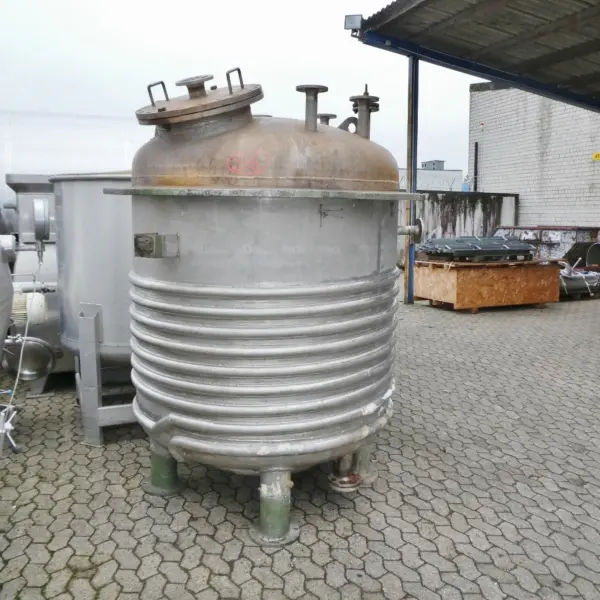

2500 liter heat-/coolable pressure tank, Aisi 316

€10,500.00  incl. VAT €12,495.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
Zentralwerkstatt Griesheim
location
Bremen
condition
used
Vessel
volume
2.500 liter
vacuum
1,0 bar
max. excess pressure
6,0 bar
max. allowable working temperature
200 °C
construction
standing
stand type
legs
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
75,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
1.600 mm
cylindrical height
1.350 mm
total height
3.200 mm
Wall thickness lower bottom
9 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
12 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
available
notice
some residues of previous content, Metallic discolouration inside
remarks
4 loose foot extensions made of stainless steel are included
latest application
Chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4571
material temperatur control system
AISI 316 (V4A) 1.4571
material legs
stainless steel
