Sku 12018

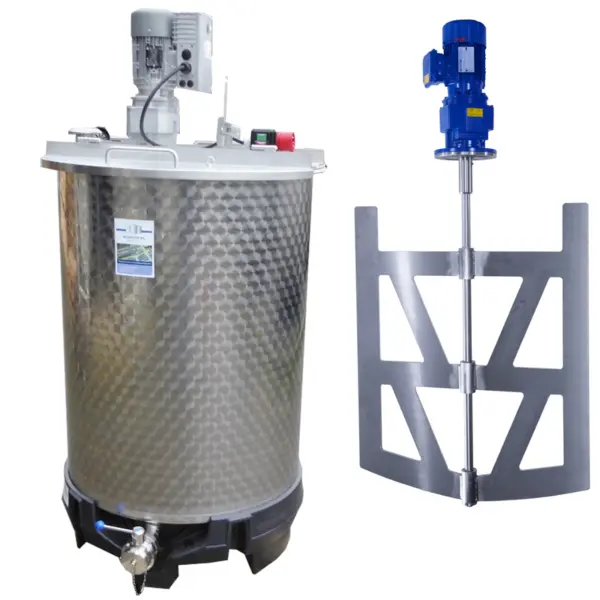

Brand new 550 liter agitator tank with anchor agitator (type SDE)

€8,800.00 €10,472.00  incl. VAT
Price per piece, excl. VAT
3 pieces on stock

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
550 liter
max. allowable working temperature
80 °C
upper bottom
agitator traverse with hinged cover
construction
standing
stand type

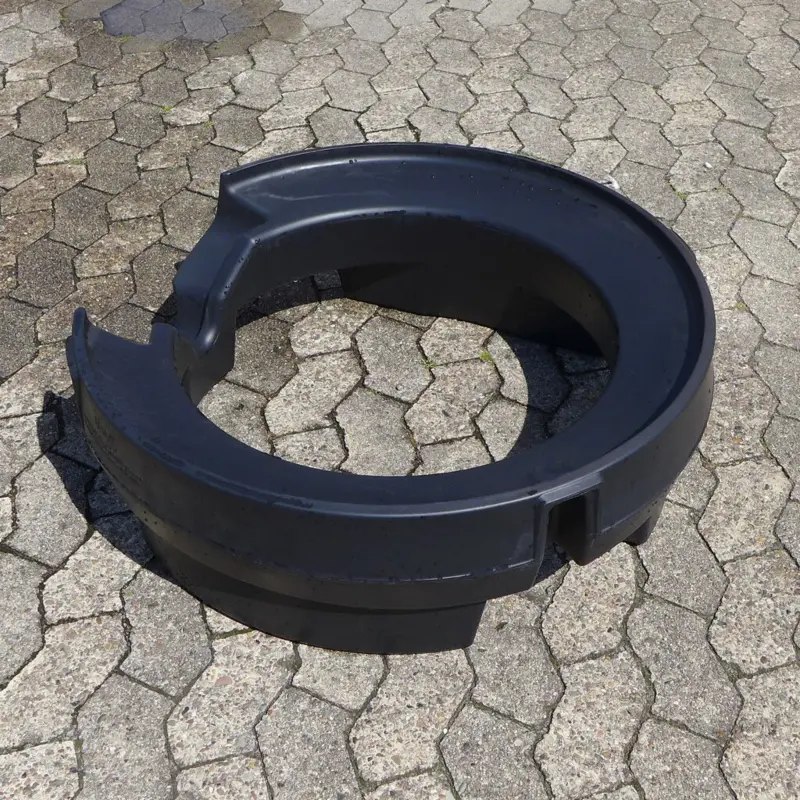

PE-base
Technical Characteristics
diameter inside
820 mm
cylindrical height
1.034 mm
total height
1.780 mm
Equipment
Technical documentation
drawing,CE label and declaration of conformity,assembly instruction,operation manual
nameplate
technical equipment

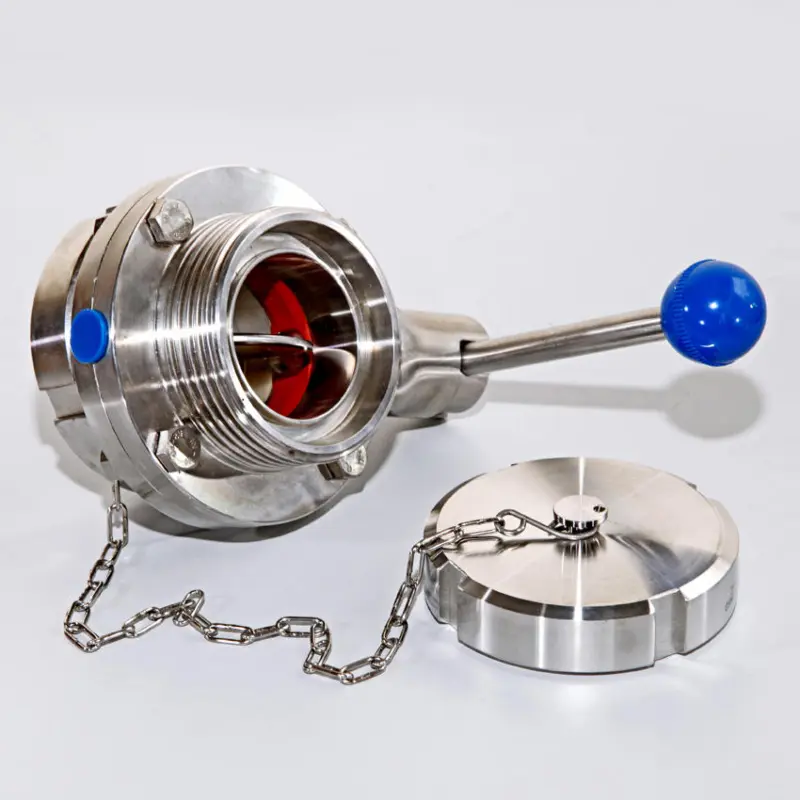

ventilation, butterfly valve
outlet

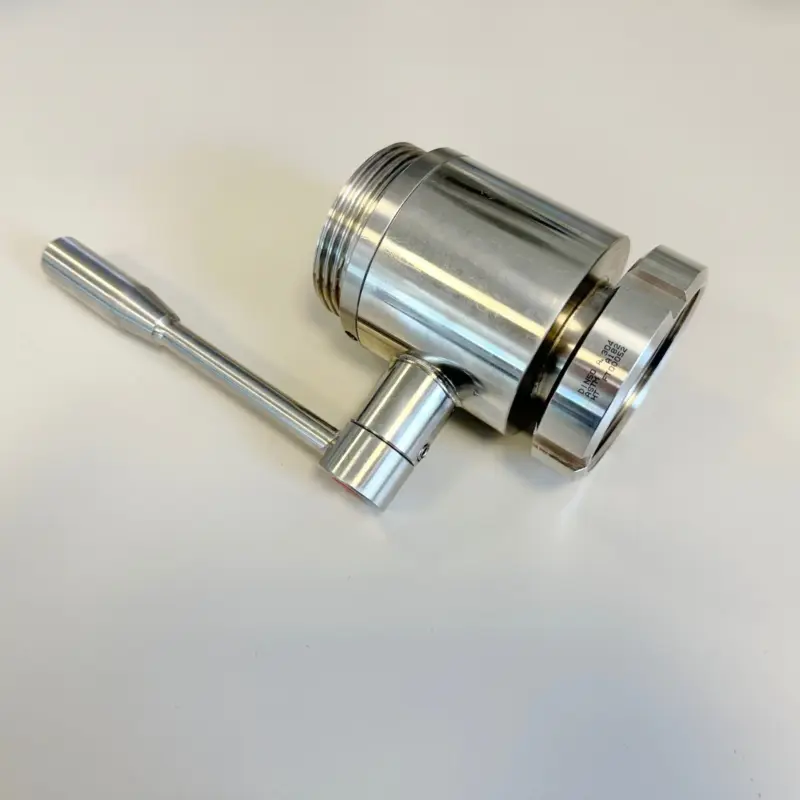

DN50 DIN 11851
Material Composition
surface outside
marbled
surface inside
high-gloss
material in contact w/ medium
AISI304 1.4301
material legs
plastic
First Agitator
power
0,75 KW
output speed
0-23 rpm
agitator
anchor agitator
voltage
400 Volt
agitator positioning
centrically in the upper bottom
agitator features
  • Getriebebau NORD frequency converter 400V IP55
  • Getriebebau NORD spur gearbox in latest aluminium technology
  • sanded anchor and welds
  • gearbox with stainless steel sealing flange and oil spill indicator
  • gearbox with food-compatible Klüber oil filling
max. viscosity
10.000 mPas

1 pc. brand new, jacketed Tank with Agitator

- material:st.st. (V2A=AISI304)

1.4301



- type:

SDE/A



- incl. CE-marking and declaration of conformity

- incl. assembly instruction, optionally in German
   or English

- cylindrical, vertical construction on loose/separate
   PE-transport and bearing shell
   (with lift-truck and forklift access from 2 sides)

- year of construction:



2013



- volume:



550

 ltrs.

- diameter:

appr.     820

 mm

- cylindrical height:

appr.  1.030

 mm

- ttl. height, incl. agitator:

appr.  1.800

 mm

- tank covering by means of cross arm
   and 2 hinged covers of st.st.
- cylindrical surfaces are marbled on the outer side
- 1 outlet DN 50 DIN 11851 in the bottom
- both cover halves with locking device
- mounted on the cross arm: 1 CEE-plug switch
   IP54 with phase inverter
- mounted on the cross arm: 1 roller lifting switch IP67, each,
   to switch off the agitators after the covers have been
   opened.

1 agitator eccentrically on st.st. cross arm:

- voltage:

400

 V

- power:



0,37

 kW

- speed:

       23

 rpm

- stirrer:  high-gloss polished anchor stirrer (Ø appr. 700 mm)

- No tank on stock at present.

- Delivery time: appr. 4 – 6 weeks after receipt of order.

PRICE / piece:

€

5.545,--



Prices: ex stock Bremen, packing excl., tax excl.
