Sku 12026

Brand new 550 liter agitator tank with high-speed propeller mixer (type SDE)

€5,350.00 €6,366.50  incl. VAT
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
550 liter
max. allowable working temperature
80 °C
upper bottom
agitator traverse with hinged cover
construction
standing
stand type
PE-base
Technical Characteristics
diameter inside
820 mm
cylindrical height
1.034 mm
total height
1.620 mm
Equipment
Technical documentation
drawing,CE label and declaration of conformity,assembly instruction,operation manual
nameplate
technical equipment

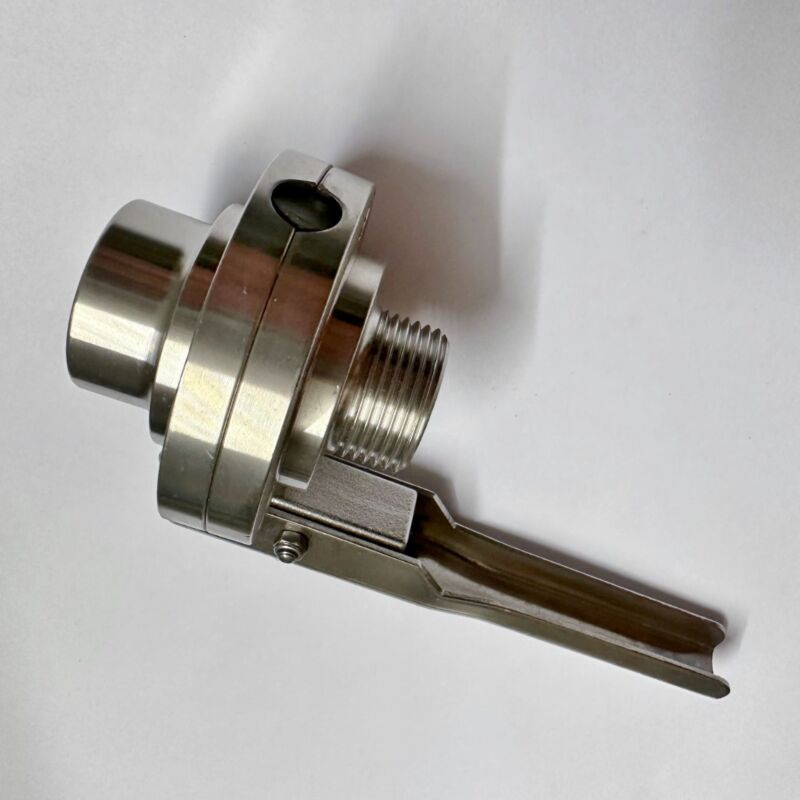

ventilation, butterfly valve
outlet
DN50 DIN 11851
Material Composition
surface outside
marbled
surface inside
high-gloss
material in contact w/ medium
AISI304 1.4301
material legs
plastic
First Agitator
power
0,75 KW
output speed
0-1500 rpm
agitator
propeller
voltage
400 Volt
agitator positioning
eccentrically in the upper bottom
agitator features

Getriebebau NORD frequency converter 230V IP55

max. viscosity
600 mPas

1 pc. brand new Tank with Agitator

- material: st.st, V2A=AISI304

1.4301



- type:



SDE/S



- incl. CE marking and declaration of conformity

- incl. operation manual, optionally in German or English

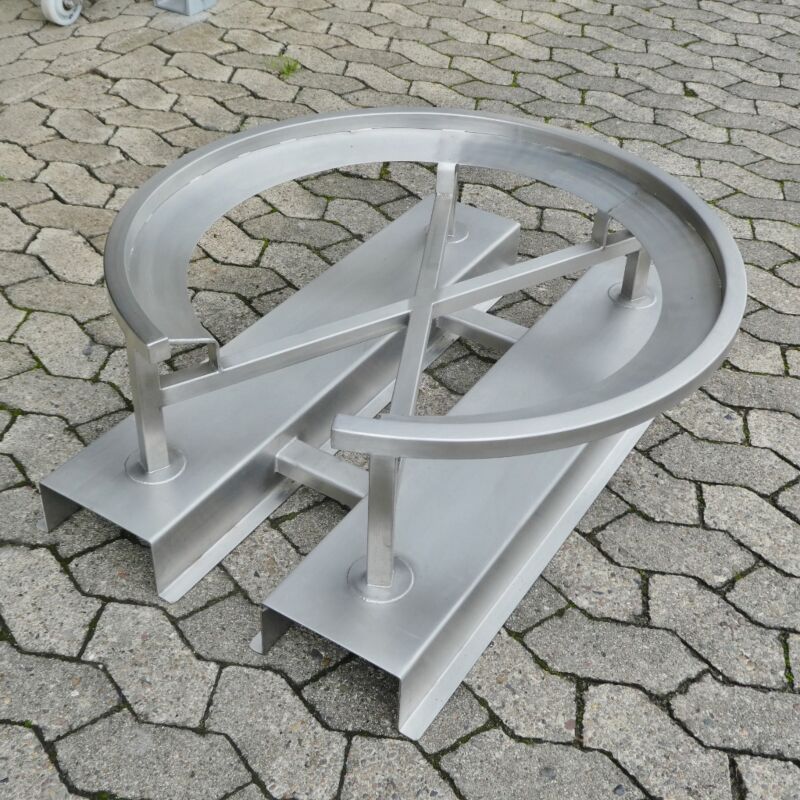

- cyl. vertical construction on loose PT-transport-
   and supporting foot (with forklift access from 2
   sides for lift-truck and forklift)

- year of construction:



2013



- volume:



550

 ltrs.

- diameter:

appr.     820

 mm

- cyl. height:

appr.  1.030

 mm

- ttl. height, incl. agitator:

appr.  1.600

 mm

- tank covering by means of crossarm
   and 2 hinged covers of st.st.

- cylinder surfaces are marbled on the outer side

- 1 outlet DN 50 DIN 11851 in the bottom

- both cover halves with locking mechanism
- mounted on the cross arm:
  1 CEE plug switch IP54 with phase changer
- mounted on the cross arm:
  1 lever switch IP67, each, to switch off the
  agitators after opening of the covers

1 agitator eccentrically on st.st. cross arm:

- voltage:



400

 V

- power:



0,37

 kW

- speed:



1.390

 rpm

- stirrer:  3-blades propeller Ø appr. 125 mm

PRICE / piece:

€

2.560,--



Prices: ex stock Bremen, packing excl., tax excl.
