Sku 12019

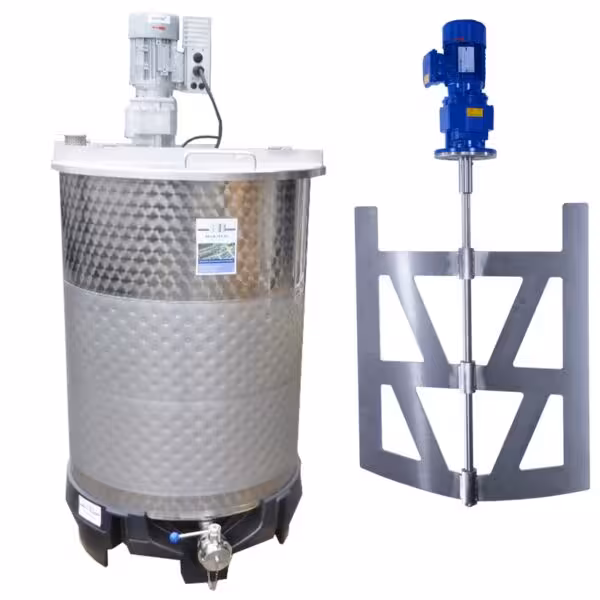

Brand new 550 liter heat-/coolable agitator tank with anchor agitator (type SDE)

€9,350.00 €11,126.50  incl. VAT
Price per piece, excl. VAT
1 on Stock

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
550 liter
max. allowable working temperature
80 °C
upper bottom
agitator traverse with hinged cover
construction
standing
stand type
PE-base
double jacket
double jacket
available
Volume double jacket
2.5 liter
max. allowable working overpressure (dj)
5.0 bar
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
thermoplate
Technical Characteristics
diameter inside
820 mm
cylindrical height
1.034 mm
total height
1.780 mm
Equipment
Technical documentation
drawing,CE label and declaration of conformity,assembly instruction,operation manual
nameplate
technical equipment
ventilation, butterfly valve
outlet
DN50 DIN 11851
Material Composition
surface outside
marbled
surface inside
high-gloss
material in contact w/ medium
AISI304 1.4301
material temperatur control system
stainless steel
material legs
plastic
First Agitator
power
0,75 KW
output speed
0-23 rpm
agitator
anchor agitator
voltage
400 Volt
agitator positioning
centrically in the upper bottom
agitator features
  • Getriebebau NORD frequency converter 400V IP55
  • Getriebebau NORD spur gearbox in latest aluminium technology
  • sanded anchor and welds
  • gearbox with stainless steel sealing flange and oil spill indicator
  • gearbox with food-compatible Klüber oil filling
max. viscosity
10.000 mPas

1 pc. brand new, jacketed Tank with Agitator

- material: st.st. (V2A=AISI304)



1.4301



- type:



SDE/A



- incl. CE marking and declaration of conformity

- incl. operation manual, optionally in German or English

- cyl. vertical construction on separate PE-trans-
   port- and supporting platform (can be accessed
   from 2 sides with lift-truck and forklift)

- year of construction:



2013



- volume:



550

 ltrs.

- diameter:

appr.     820

 mm

- cylindrical height:

appr.   1.030

 mm

- ttl. height, incl. agitator:

appr.  1.800

 mm

- st.st. double jacket (thermoplate) for heating/
   cooling around appr. 620 mm of the cyl. length
   (according to the manufacturer the double
   jacket can be operated up to a max. working
   pressure of 5 bar (water); not suitable for
   steam operation)

- the tank is covered by a cross arm
   and 2hinged covers of st.st.

- cylinder surfaces are marbled on the outer side

- 1 outlet DN 50 DIN 11851 in the bottom

- both cover halves with locking mechanism
- mounted on the cross arm: 1 CEE plug switch
  IP54 with phase changer
- mounted on the cross arm: 1 lever switch IP67,
   each, to switch off the agitators after opening of
   the covers

1 agitator eccentrically on st.st. cross arm:

- voltage:



400

 V

- power:



0,37

 kW

- speed:



23

 rpm

- stirrer:   high-gloss polished anchor stirrer (Ø appr. 700 mm)

PRICE:

€

5.950,--



Prices: ex stock Bremen, packing excl., tax excl.
