Sku 12025

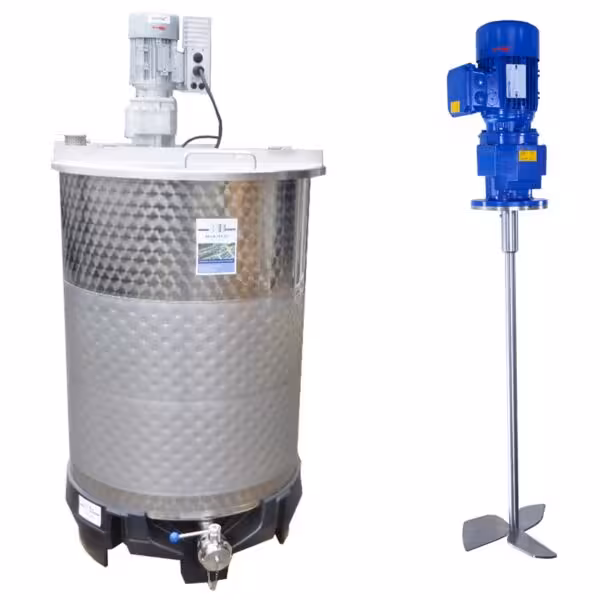

Brand new 550 liter heat-/coolable agitator tank with slow-running propeller mixer (type SDE)

€6,950.00 €8,270.50  incl. VAT
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
550 liter
max. allowable working temperature
80 °C
upper bottom
agitator traverse with hinged cover
construction
standing
stand type
PE-base
double jacket
double jacket
available
Volume double jacket
2.5 liter
max. allowable working overpressure (dj)
5.0 bar
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
thermoplate
Technical Characteristics
diameter inside
820 mm
cylindrical height
1.034 mm
total height
1.780 mm
Equipment
Technical documentation
drawing,CE label and declaration of conformity,assembly instruction,operation manual
nameplate
technical equipment
ventilation, butterfly valve
outlet
DN50 DIN 11851
Material Composition
surface outside
marbled
surface inside
high-gloss
material in contact w/ medium
AISI304 1.4301
material temperatur control system
stainless steel
material legs
plastic
First Agitator
power
0,75 KW
output speed
0-275 rpm
agitator
propeller
voltage
400 Volt
agitator positioning
eccentrically in the upper bottom
agitator features
  • Getriebebau NORD frequency converter 400V IP55
  • Getriebebau NORD spur gearbox in latest aluminium technology
  • gearbox with stainless steel sealing flange and oil spill indicator
  • gearbox with food-compatible Klüber oil filling
  • gear motor without coating
max. viscosity
1.000 mPas



1 pc. brand new, jacketed Tank with Agitator

- material: st.st. (V2A=AISI304)



1.4301



- type:



SDE/L



- incl. CE marking and declaration of conformity

- incl. operation manual, optionally in German or English

- cyl., vertical construction on separate PE-
   transport- and bearing platform (with forklift and
   lift-truck access from all 2 sides)

- year of construction:



2013



- volume:



550

 ltrs.

- diameter:

appr.     820

 mm

- cyl. height:

appr.  1.030

 mm

- ttl. height, incl. agitator:

appr.  1.680

 mm

- double jacket (thermoplate) of st.st. for heating/
   cooling around appr. 620 mm of the cyl. length
   (acc. to the manufacturer, the double jacket
   can be operated up to a max. working pressure
   of 5 bar (water); not suitable for steam operation)

1 agitator eccentrically on cross-arm of st.st.:

- voltage:



400

 V

- power:



0,37

 kW

- speed:



210

 rpm

- stirrer:  3-blades propeller   Ø appr. 250 mm

- tank is covered by a cross-arm
   and 2 hinged covers of st.st.
- the cylinder surfaces are marbled on the outer side
- 1 outlet DN 50 DIN 11851 in the bottom

- both cover halves with locking mechanism
- mounted on the cross arm:
  1 CEE plug switch IP54 with phase changer
- mounted on the cross arm:
  1 lever switch IP67, each, to switch off the
  agitators after opening of the covers

PRICE / piece:

€

3.770,--



Prices: ex stock Bremen, packing excl., tax excl.
