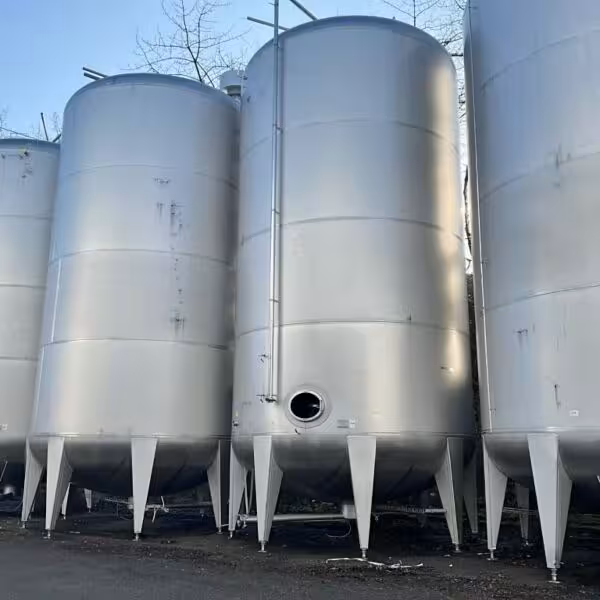

83500 liter storage tank, Aisi 304
€42,000.00
incl. VAT
€49,980.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
Rieger
location
external stock
condition
used
Vessel
volume
83.500 liter
max. excess pressure
0.5 bar
max. allowable working temperature
50 °C
specific weight of the medium
1,35 (to/m³)
construction
standing
stand type
legs height adjustable
quantity legs
8 Piece
Technical Characteristics
diameter inside
3.850 mm
cylindrical height
600 mm
total height
8.690 mm
Wall thickness lower bottom
5.4 mm
wall thickness of upper bottom
3.0 mm
year of construction
2004
Equipment
Technical documentation
drawing
manhole
in the cylinder (appr. 350 x 450 mm)
nameplate
technical equipment
ventilation, spray ball, crane eyes
outlet
DN100 DIN 11851
remarks
Total height corresponds to manufacturer drawing, the actual total height might deviate slightly
latest application
Fruit juice
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material legs
stainless steel
