8759

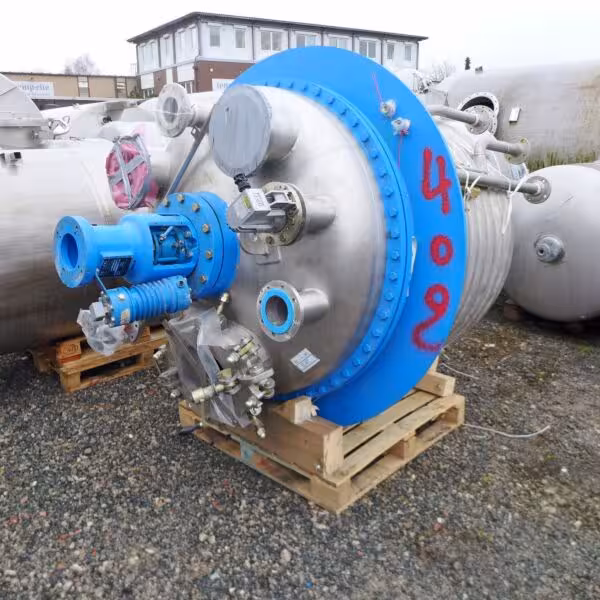

2420 liter heat-/coolable reactor with blade stirrer, AISI316
€18,500.00
incl. VAT
€22,015.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Hersteller
HANAG
location
Bremen
condition
used
Vessel
volume
2.420 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
upper bottom
upper bottom removable / hinged
construction
hanging
stand type
ring
double jacket
double jacket
available
Volume double jacket
100,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Technical Characteristics
diameter inside
1.400 mm
cylindrical height
1.180 mm
total height
3.400 mm
Wall thickness lower bottom
6.1 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
7 mm
Equipment
Technical documentation
drawing,various documents ,certificate of inspection
manhole
in the upper bottom
nameplate
technical equipment
crane eyes
outlet
available
remarks
Manhole DN 350/450 (manhole cover incomplete); Support ring, Fe; Flanges partially Fe
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
material temperatur control system
AISI 304 (V2A) 1.4306
Agitator
manufacturer stirrer
Ekato
power
2.2 KW
output speed
46 - 230 rpm
agitator
blade agitator
stirrer seal
mechanical seal with thermosyphon
voltage
400 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
stream interrupter
agitator positioning
centrically in the upper bottom
agitator features
Blades & propeller agitator elements installed on the shaft; Speed was controlled by an external speed controller (no longer available) at the previous operator; Various technical documents for the agitator available
