8550

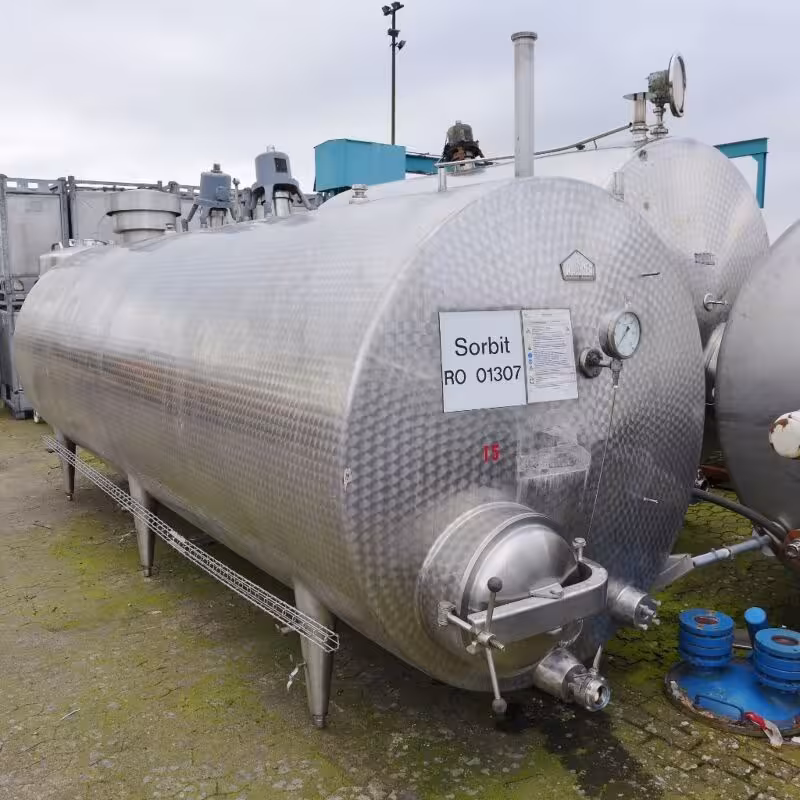

12000 liter insulated agitator tank, Aisi 304 with 2 propeller agitators
€9,850.00
incl. VAT
€11,721.50
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
Waldner
location
Bremen
condition
used
Vessel
volume
12.000 liter
construction
horizontal
stand type
legs height adjustable
quantity legs
6 Piece
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
PU - foam
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.740 mm
diameter outside
1.850 mm
cylindrical length
5000 mm
total height
2.600 mm
total length
6.100 mm
Equipment
technical equipment
ventilation, butterfly valve, spray ball
outlet
available
remarks
1 partition (with openings) in the middle of the tank divides the cylinder length of 5000 mm into 2 x 2,500 mm; lower area in the inner tank straight instead of round due to the design; both tank chambers with a manhole diameter 450 mm; 1 chamber with an outlet DN 65 DIN 11851, the other with an outlet DN 40 DIN 11851; product residue inside the tank; 1 sheet metal cutout at the top of the insulating jacket (see photos)
latest application
Sorbitol tank in the food industry
Material Composition
surface outside
marbled
material in contact w/ medium
AISI304 (V2A) 1.4301
material legs
stainless steel
Agitator
manufacturer stirrer
Stelzer
power
0.37 KW
output speed
720 rpm
agitator
propeller
voltage
220/380 Volt
stirrer
2 stirrer
agitator positioning
on the tank
agitator features
Agitator data the same for both agitators
