Serbatoi con agitatore

Behälter KG offre serbatoi miscelatori in acciaio inox di alta qualità e di qualsiasi dimensioni. Ordinati per ordini crescente di capacità, di seguito troverai una vasta gamma di serbatoi miscelatori usati o nuovi di zecca. Tutti i prodotti presenti sono in pronta consegna e possono essere trasportati in tutti il mondo.

Items 1-24 of 400

Set Descending Direction
per page
    • Riscaldabile: 4,0 bar
    • Vuoto massimo:1,0 bar
    • Elemento miscelante :Agitatore ad ancora
    • Motore:32 - 150 rpm
    • Potenza:0.37 KW

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Riscaldabile
    • Elemento miscelante :Agitatore a pale inclinate
    • Motore:58 rpm
    • Potenza:0.25 KW
    • Altezza Totale: 1.580 mm
    • Altezza Cilindrico/mm: 370 mm
    • Diametro interno: 350 mm
    • Diametro esterno: 410 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Elemento miscelante :Agitatore magnetico
    • Altezza Totale: 920 mm
    • Larghezza Totale/mm: 480 mm
    • Lunghezza Totale/mm: 640 mm

    Prezzo cadauno, IVA escl.

    4 pezzi a maggazino

    • Riscaldabile: 1,5 bar
    • Pressione massima:4,0 bar
    • Vuoto massimo:1,0 bar
    • Elemento miscelante :Agitatore magnetico
    • documenti disponibili:
    • Altezza Totale: 700 mm
    • Diametro interno: 363 mm
    • Diametro esterno: 450 mm

    Prezzo cadauno, IVA escl.

    5 pezzi a maggazino

    • Riscaldabile: 4,0 bar
    • Pressione massima:2,0 bar
    • Coibentazione
    • Elemento miscelante :Agitatore ad ancora
    • Motore:18 - 108 rpm
    • Potenza:0.55 KW
    • documenti disponibili:

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Riscaldabile: 1,5 bar
    • Pressione massima:3,0 bar
    • Vuoto massimo:1,0 bar
    • Elemento miscelante :Agitatore magnetico
    • documenti disponibili:
    • Altezza Totale: 620 mm
    • Diametro interno: 450 mm
    • Diametro esterno: 550 mm

    Prezzo cadauno, IVA escl.

    2 pezzi a maggazino

    • Riscaldabile
    • Coibentazione
    • Elemento miscelante :Agitatore ad ancora
    • Altezza Totale: 2.000 mm
    • Altezza Cilindrico/mm: 300 mm
    • Diametro interno: 540 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Elemento miscelante :Agitatore ad elica marina
    • Motore:1.320 rpm
    • Potenza:0.37 KW
    • Altezza Totale: 1.350 mm
    • Altezza Cilindrico/mm: 550 mm
    • Diametro interno: 475 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Riscaldabile
    • Elemento miscelante :Agitatore ad ancora
    • Motore:17 - 155 rpm
    • Altezza Totale: 1.550 mm
    • Altezza Cilindrico/mm: 460 mm
    • Diametro interno: 500 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Elemento miscelante :Agitatore ad elica marina
    • Motore:920 rpm
    • Potenza:0.37 KW
    • Altezza Totale: 1.000 mm
    • Altezza Cilindrico/mm: 450 mm
    • Diametro interno: 600 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Elemento miscelante :Flangia
    • Altezza Totale: 1.000 mm
    • Altezza Cilindrico/mm: 450 mm
    • Diametro interno: 600 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Elemento miscelante :Flangia
    • Altezza Totale: 1.250 mm
    • Altezza Cilindrico/mm: 560 mm
    • Diametro interno: 470 mm

    Prezzo cadauno, IVA escl.

    2 pezzi a maggazino

    • Elemento miscelante :Agitatore magnetico
    • Potenza:0.18 KW
    • Altezza Totale: 1.150 mm
    • Altezza Cilindrico/mm: 300 mm
    • Diametro interno: 540 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Riscaldabile
    • Elemento miscelante :Agitatore ad elica marina
    • Altezza Totale: 1.600 mm
    • Altezza Cilindrico/mm: 370 mm
    • Diametro interno: 600 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

  1. 5873

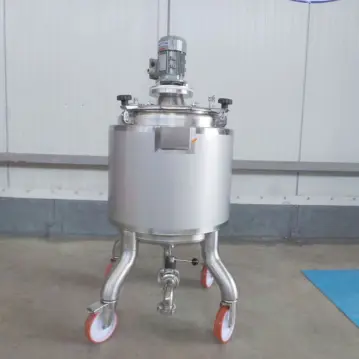

    Serbatoio 100 litri, AISI 304 Prezzo su richiesta
    • Riscaldabile: 1,0 bar
    • Elemento miscelante :Agitatore ad ancora
    • Altezza Totale: 1.250 mm
    • Altezza Cilindrico/mm: 790 mm
    • Diametro interno: 590 mm
    • Diametro esterno: 640 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Riscaldabile: 1,0 bar
    • Pressione massima:1,5 bar
    • Elemento miscelante :Agitatore magnetico
    • Altezza Totale: 1.350 mm
    • Altezza Cilindrico/mm: 750 mm
    • Diametro interno: 400 mm
    • Diametro esterno: 500 mm

    Prezzo cadauno, IVA escl.

    5 pezzi a maggazino

    • Riscaldabile: 2,5 bar
    • Pressione massima:3,0 bar
    • Vuoto massimo:1,0 bar
    • Coibentazione
    • Elemento miscelante :Agitatore ad elica marina
    • Motore:690 rpm
    • Potenza:0.37 KW
    • documenti disponibili:
    • Altezza Totale: 1.650 mm
    • Altezza Cilindrico/mm: 500 mm
    • Diametro interno: 500 mm
    • Diametro esterno: 600 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Elemento miscelante :Flangia
    • documenti disponibili:
    • Altezza Totale: 1.400 mm
    • Altezza Cilindrico/mm: 500 mm
    • Diametro esterno: 605 mm

    Prezzo cadauno, IVA escl.

    8 pezzi a maggazino

    • Riscaldabile: 3,0 bar
    • Coibentazione
    • Elemento miscelante :Flangia
    • documenti disponibili:
    • Altezza Totale: 1.450 mm
    • Altezza Cilindrico/mm: 375 mm
    • Diametro interno: 406 mm
    • Diametro esterno: 700 mm

    Prezzo cadauno, IVA escl.

    2 pezzi a maggazino

    • Coibentazione
    • Elemento miscelante :Agitatore ad elica marina
    • Motore:400 rpm
    • Potenza:0,37 KW
    • ceritficato EX:
    • Altezza Totale: 1.650 mm
    • Larghezza Totale/mm: 1.000 mm
    • Lunghezza Totale/mm: 1.000 mm
    • Diametro interno: 560 mm
    • Diametro esterno: 750 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Elemento miscelante :Flangia
    • documenti disponibili:
    • Altezza Totale: 1.118 mm
    • Altezza Cilindrico/mm: 550 mm
    • Diametro interno: 670 mm
    • Diametro esterno: 676 mm

    Prezzo cadauno, IVA escl.

    4 pezzi a maggazino

    • Coibentazione
    • Elemento miscelante :Agitatore ad ancora
    • Motore:16.5 / 32 rpm
    • Potenza:0.88 / 1.3 KW
    • Altezza Totale: 1.700 mm
    • Altezza Cilindrico/mm: 580 mm
    • Diametro interno: 790 mm
    • Diametro esterno: 920 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

    • Coibentazione
    • Elemento miscelante :Agitatore a pale inclinate
    • Motore:2.850 rpm
    • Potenza:1,8 KW
    • Altezza Totale: 1.700 mm
    • Altezza Cilindrico/mm: 700 mm
    • Diametro interno: 590 mm
    • Diametro esterno: 760 mm

    Prezzo cadauno, IVA escl.

    2 pezzi a maggazino

    • Riscaldabile: 4,0 bar
    • Pressione massima:1,0 bar
    • Vuoto massimo:1,0 bar
    • Coibentazione
    • Elemento miscelante :Agitatore ad elica marina
    • Motore:156 - 838 rpm
    • Potenza:0.75 KW
    • ceritficato EX:
    • Altezza Totale: 2.400 mm
    • Diametro interno: 590 mm
    • Diametro esterno: 800 mm

    Prezzo cadauno, IVA escl.

    1 pezzo a maggazino

Items 1-24 of 400

Set Descending Direction
per page

Which mixing technology works best for my application?

Stirring vessels and mixing tanks differ primarily in the underlying stirring task and viscosity of the respective medium. Basic stirring tasks include homogenizing, suspending, dispersing, emulsifying and gassing, whereby the viscosity can vary from 1-600 millipascals (aqueous) up to 100,000 mPas.

Behälter KG offers agitators for all types of application, with the following agitators / impellers being most common:

  • propeller stirrer: well suited for simple homogenization of aqueous substances, as a directly driven high-speed mixer (e.g. for fruit juice or spirits) or with lower speed though a geared motor for more gentle mixing (e.g. milk or dairy products)
  • anchor agitator / frame stirrer: slow-speed, anchor-shaped agitator for highly viscous substances, e.g. as maturation tank or for products such as chocolate, toothpaste or polymer solutions
  • blade stirrer: slow-speed geared agitator with blade-shaped agitator elements, for a gentle homogenization of low- to medium-viscous products, such as mayonnaise, coatings, shampoo or pudding
  • oblique blade stirrer: 4-blade impeller element, installed at a 45° angle, suitable for homogenizing, dispersing, suspending and degassing with a comparatively high power input
  • dissolver: support plate with tooth-like circumferencing elements, the dissolver generates high shear forces and is suitable for dispersion, emulsification or wet milling (e.g. printing inks, pigment pastes or plasters)
  • cup stirrer: slow-speed cone shaped cups, particularly suitable for the gentle homogenization and degassing of aqueous to viscous substances, without shear forces (e.g. soap, oils, lotions, shampoo)
  • jetstream-mixer: fast-running rotor-stator agitator, for very fast homogenization without air entry and sedimentation
  • Magnetic stirrer: installed in the bottom of the tank, designed for aseptic mixing applications and very small amounts of product to be mixed (e.g. eye drops, active ingredients, laboratory tests)



Brand-new mixing tanks- standardized product groups

Behälter KG has developed various standardized mixing tanks over the years, which we usually have available pre-produced directly from our stock. These stirring tanks primarily include the following standardized product groups:

We have extensive technical documentation for our standardized stirring vessels and of course also offer you the necessary spare parts over a long term period. If required, we can also adapt our standardized stirring vessels to your customer-specific requirements!

Benefits of second-hand (used) stainless steel mixing tanks

Our large selection of “made in Germany” used mixing tanks and stirring vessels offers an instantly available premium production machine, at significantly reduced budget.

Especially with complex mixing requirements such as coaxial agitators, anchor agitators with wipers or agitators with mechanical seals, used agitator tanks are often available for a fraction of a brand new tank. All of our second-hand stirring tanks have been used until recently – we can gladly provide you with detailed pictures or additional information if you want to better understand the condition of a specific product. As our used stirring tanks come primarily from the German-speaking countries, they were built almost exclusively by well-known brand manufacturers - this can also be seen in the excellent material processing welding quality.

Our used stainless-steel mixing tanks come from a variety of industries - classic areas of application are food processing (e.g. chocolate, yoghurt), beverages (beer, fruit juice, mineral water), chemicals (paint, polymers) and pharmaceuticals (cremes, herbal medicine). We will always clearly state the previous operational purpose for our second-hand machinery, so that the suitability for a new application can be easily determined.



Brand new “made to measure” mixing tanks

For customers or plant engineers with very specific requirements, we offer custom-made stirring tanks at an attractive delivery time and a good price / performance ratio.

We would be happy to make you an offer according to your specifications, simply contact us using our  contact form .

Our production spectrum covers the whole range of stirring technology, paired with 50 years of experience in stainless steel tank construction. Configuration options include, for example:

  • Vertical mixing tanks made of stainless steel
  • Horizontal mixing tanks made of stainless steel, installed on legs or on saddles
  • Temperature controlled (heated / coolable) tanks with agitator or reactors made of stainless steel
  • Insulated stainless steel stirring vessels
  • Pressure-resistant stainless steel reactors

In all custom-made projects, the stirring technology is tailored to your process requirements. For low-viscosity applications, for example, we can offer inexpensive high-speed propeller agitators. However, we are also experienced in more complex areas, such as anchor agitator tanks or process tanks with multiple agitators.
