Serbatoi orizzontali
Behälter KG offre una vasta gamma di serbatoi di stoccaggio orizzontali in pronta consegna. Essi sono particolarmente utili in spazi ristretti o in presenza d’altezze ridotte. Da semplici serbatoi di accumulo fino a grandi serbatoi di stoccaggio, siamo in grado di offrire qualsiasi capacità volumetrica, ordinate per ordine crescente di volume. Serbatoi e Contenitori orizzontali di qualsiasi dimensione.

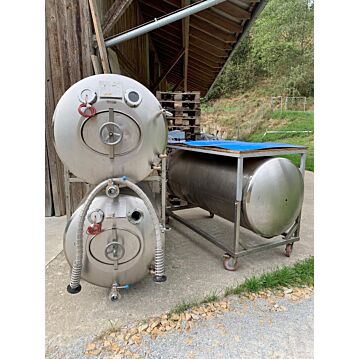

- 8695550 liter mobile tub, Aisi 304 1.200,00 €
- Altezza Totale: 950 mm
- Larghezza Totale/mm: 1.000 mm
- Lunghezza Totale/mm: 2.000 mm
- 5349Serbatoio 630 litri, AISI 316 1.800,00 €
- Lunghezza Totale/mm: 2.000 mm
- Diametro interno: 690 mm
- 5331Serbatoio 650 litri, AISI 316 1.900,00 €
- Lunghezza Totale/mm: 2.050 mm
- Diametro interno: 690 mm

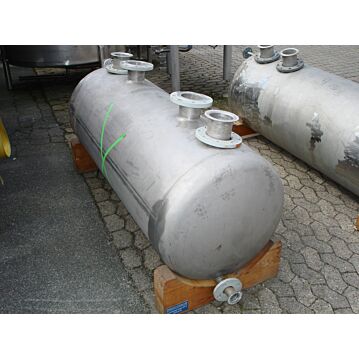

- 5324Serbatoio 650 litri, AISI 316 1.900,00 €
- Lunghezza Totale/mm: 2.000 mm
- Diametro interno: 700 mm
- 86411000 liter tank, Aisi 304 1.200,00 €
- Altezza Totale: 1.280 mm
- Lunghezza Totale/mm: 1.500 mm
- Diametro interno: 990 mm
- 89141300 liter pressure tank, Aisi 316 4.500,00 €
- Pressione massima:3,2 bar
- Vuoto massimo:1,0 bar
- documenti disponibili:
- Altezza Totale: 1.800 mm
- Lunghezza Totale/mm: 1.800 mm
- Diametro interno: 1.000 mm
-
- 87881840 Liter Druckbehälter aus V4A 5.600,00 €
- Pressione massima:3,2 bar
- Vuoto massimo:1,0 bar
- documenti disponibili:
- Diametro interno: 1.000 mm
- 84552645 liter tank, Aisi 304 3.800,00 €
- Altezza Totale: 1.500 mm
- Lunghezza Totale/mm: 2.800 mm
- Diametro interno: 1.190 mm
- S141992820 Liter insulated mixing tank, Aisi 304 2.485,00 €
- Coibentazione
- Elemento miscelante :Agitatore a pala
- Altezza Totale: 2.220 mm
- Larghezza Totale/mm: 1.770 mm
- Lunghezza Totale/mm: 2.100 mm
- 85583000 liter insulated tank, Aisi 304 with agitator flange 4.200,00 €
- Coibentazione
- Elemento miscelante :Flangia
- Altezza Totale: 1.600 mm
- Lunghezza Totale/mm: 4.000 mm
- Diametro interno: 1.100 mm
- Diametro esterno: 1.200 mm
- 83083000 liter horizontal tank, Aisi 304 2.250,00 €
- Coibentazione
- Elemento miscelante :Agitatore a pala
- Lunghezza Totale/mm: 2.950 mm
- Diametro interno: 1.320 mm
- 78483000 Liter Behälter aus V2A 3.750,00 €
- Altezza Totale: 1.800 mm
- Lunghezza Totale/mm: 2.600 mm
- Diametro interno: 1.310 mm
- 85573300 liter insulated tank, Aisi 304 with propeller agitator 4.600,00 €
- Coibentazione
- Elemento miscelante :Agitatore ad elica marina
- Motore:680 rpm
- Potenza:0.3 KW
- Altezza Totale: 1.850 mm
- Lunghezza Totale/mm: 3.050 mm
- Diametro interno: 1.390 mm
- Diametro esterno: 1.500 mm
- 71794000 Liter Behälter aus V2A 3.450,00 €
- Coibentazione
- Elemento miscelante :Agitatore a pale inclinate
- Motore:195 rpm
- Potenza:1.5 KW
- documenti disponibili:
- Altezza Totale: 2.150 mm
- Lunghezza Totale/mm: 3.700 mm
- Diametro interno: 1.290 mm
- 83605000 liter insulated storage tank, Aisi 304 3.800,00 €
- Coibentazione
- Elemento miscelante :Agitatore ad elica marina
- Altezza Totale: 2.100 mm
- Lunghezza Totale/mm: 3.200 mm
- Diametro interno: 1.580 mm
- Diametro esterno: 1.700 mm
- S144395000 liter horizontal tank, Aisi 316 8.030,00 €
- Pressione massima:0,5 bar
- Altezza Totale: 1.600 mm
- Lunghezza Totale/mm: 4.500 mm
- Diametro interno: 1.265 mm
-
- 88925360 liter tank, Aisi 304 5.500,00 €
- Altezza Totale: 2.000 mm
- Lunghezza Totale/mm: 3.800 mm
- Diametro interno: 1.390 mm
- 88915360 liter tank, Aisi 304 5.500,00 €
- Altezza Totale: 1.650 mm
- Lunghezza Totale/mm: 3.800 mm
- Diametro interno: 1.390 mm
- 87726500 Liter horizontaler Druckbehälter aus V4A 8.750,00 €
- Pressione massima:2,0 bar
- Vuoto massimo:0,2 bar
- 89116890 liter tank, Aisi 304 5.950,00 €
- Altezza Totale: 1.650 mm
- Lunghezza Totale/mm: 4.800 mm
- Diametro interno: 1.390 mm
- 73448000 Liter Behälter aus V2A 4.950,00 €
- Elemento miscelante :Flangia
- Altezza Totale: 2.300 mm
- Lunghezza Totale/mm: 3.300 mm
- Diametro interno: 1.940 mm
- 84198900 liter tank, Aisi 304 4.200,00 €
- Altezza Totale: 2.300 mm
- Lunghezza Totale/mm: 3.600 mm
- Diametro interno: 1.890 mm
Which horizontal tank design variants are common?
The following design types are most common for horizontal tanks & vessels:
- Horizontal tanks on leg support: at least 4 solid legs carry the weight of the tank
- Horizontal tanks on saddle support: at least 2 semicircular saddles carry the weight of the tank, the saddles are typically loose but fixed to the tank due to the weight load
- Horizontal underground storage tanks: tank without supports is positioned underground (e.g. for extinguishing water, rainwater storage or as buffer tank)
- Double-wall storage tanks with safety jacket: Compliant with German law (WHG), a double wall surrounds the entire tank, which is filled with control liquid (e.g. used to store hazardous goods such as petrol or fertilizer)

Example of a typical insulated milk tank in horizontal design
Which benefits offer second-hand horizontal tanks?
Our wide range of high-quality used horizontal stainless-steel tanks are instantly available from stock, compared to long delivery times of custom-made tanks. Furthermore, a used horizontal tank can be purchased at a price much lower than a comparable new stainless steel tank.
Especially in case of more complex horizontal tanks, with insulation jacket, agitator or a higher quality alloy, the search for a second-hand horizontal tank pays off, due to an often significant price difference compared to a brand-new tank. Since our used tanks come almost exclusively from production sites in the German-speaking countries and were manufactured by well-known German manufacturers, excellent material processing and manufacturing quality is guaranteed.Brand new custom-made horizontal tanks & vessels
For special requirements, we also offer custom-made storage tanks made of steel or stainless steel, in which we can look back on 50 years of experience in tank construction. We are happy to make you an offer according to your desired specifications, contact us by using our
. Our production spectrum includes all common design variants, such as:- Horizontal stainless-steel tanks, positioned on legs or on saddles (also insulated, pressure-resistant or with agitator)
- Horizontal storage tanks according to DIN 6616 for aboveground use (made of mild steel or stainless steel)
- Horizontal storage tanks according to DIN 6608 for aboveground use (made of mild steel or stainless steel)
Horizontal storage vessels according to DIN 6616 or DIN 6608 with a leakage jacket for water polluting flammable and non-flammable liquids (made of mild steel or stainless steel)
