Sku 9252

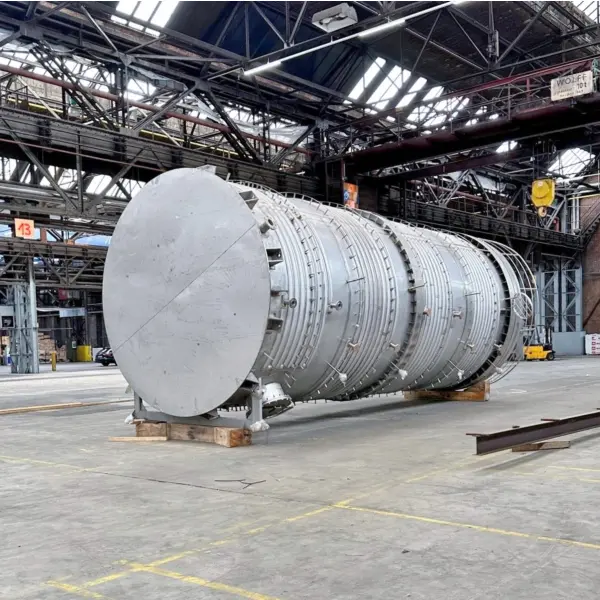

Unused 70000 liter heat-/coolable agitator tank with anchor agitator, Aisi 304
Special Price
€55,000.00
€65,450.00 incl. VAT
Regular Price
€59,500.00
€70,805.00 incl. VAT
Price per piece, excl. VAT
2 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
location
external storage 59457 Werl
condition
unused
Vessel
volume
70.000 liter
construction
standing
stand type
bracket
double jacket
double jacket
available
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
120 °C
Temperature control cylinder (dj)
half-coil
Technical Characteristics
diameter inside
3.490 mm
cylindrical height
8.250 mm
total height
11.040 mm
total width
3.820 mm
total length
3.820 mm
Wall thickness lower bottom
6 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
5 mm
year of construction
2021
Equipment
Technical documentation
drawing,various documents
manhole
in the cylinder, in the upper bottom (Ø 600)
nameplate
notice
some residues of previous content
remarks
manhole in the cylinder diameter 600 mm; Complete manufacturer documentation available; A ladder also available upon request; tank has fixtures for field installation of insulation (this fixture is slightly dented)
Material Composition
material in contact w/ medium
AISI304 1.4301
Agitator
power
22 KW
output speed
23 rpm
agitator
blade agitator
