Item no. 15871

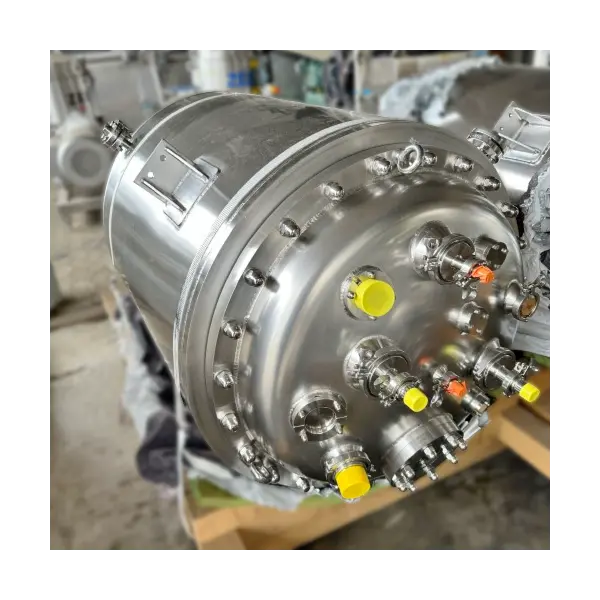

Unused 532 liter heat-/ coolable pressure tank, Aisi 316
€17,900.00 €21,301.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
location
Bremen
condition
unused
Vessel
manufacturer
volume
532 liter
max. allowable working temperature
150 °C
max. allowable working pressure
6,0 bar
vacuum
1,0 bar
specific weight of the medium
1.2 (to/m³)
heads
torispherical bottom
upper bottom
screwed cover
construction
hanging
support type
support brackets
double jacket
heating/cooling
available
Volume double jacket
24,0 liter
max. allowable working overpressure (dj)
10.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulation jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
insulation thickness
60 mm
Technical Characteristics
diameter inside
800 mm
diameter outside
1.000 mm
cylindrical height
1.040 mm
total height
1.981 mm
Wall thickness lower bottom
6 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
8 mm
year of construction
2018
Equipment
Technical documentation
drawing, German Technical Supervisory Association TÜV documents, certificate of inspection, CE label and declaration of conformity, operation manual
manhole
handhole
nameplate
technical equipment
spray ball, lifting lugs
outlet
available
remarks
Fully comprehensive documentation in accordance with pharmaceutical industry standards included in the scope of delivery; device was manufactured for a global pharmaceutical company but never put into operation there; hand hole with sight glass diameter: 100 mm; incl. Südmo single seat valve SVP (outlet)
Material Composition
material in contact w/ medium
AISI 316L 1.4435
