9162

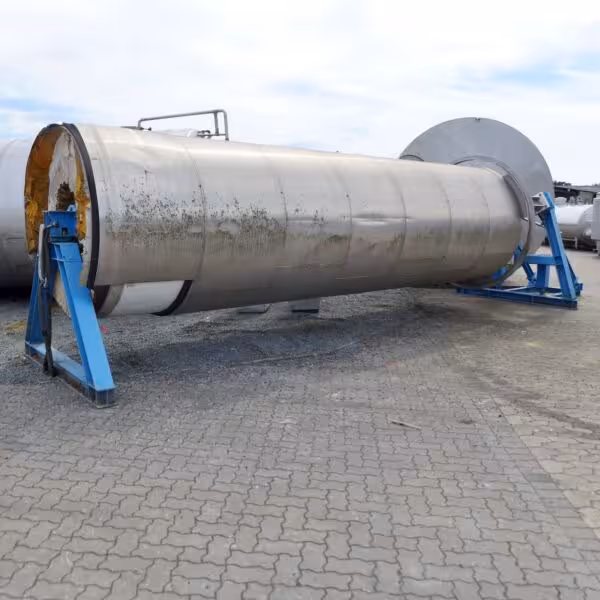

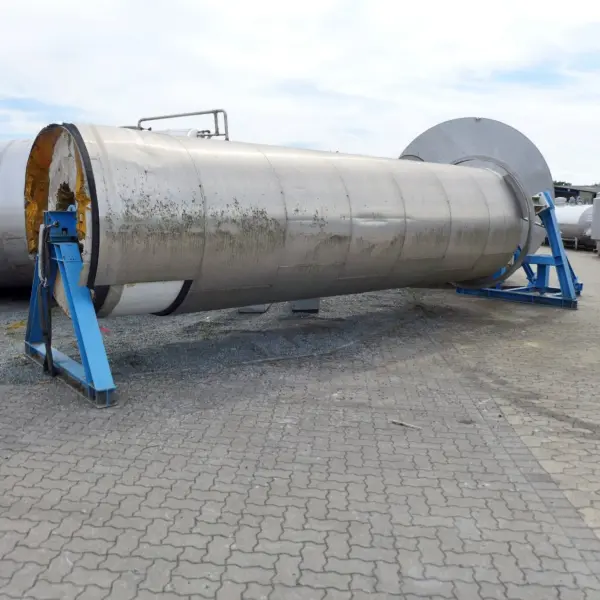

Unused 10000 liter heat-/coolable pressure tank designed for cryogenic liquids, Aisi 304
€15,500.00
incl. VAT
€18,445.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
unused
Vessel
volume
10.000 liter
max. excess pressure
18,0 bar
max. allowable working temperature
50 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
temperature control inside
heating-coil
Insulation
insulation
available
insulating jacket
screwed
material insulation jacket
stainless steel
Technical Characteristics
diameter outside
1.850 mm
cylindrical height
5.239 mm
total height
7.700 mm
total width
2.300 mm
year of construction
2010
Equipment
Technical documentation
drawing,various documents ,operation manual
nameplate
notice
some residues of previous content, dents at the cylinder
remarks
Tank was designed as gas station for LNG but never used; though a bundled element in the middle of the tank it can be heated or cooled; 2 transport blocks made of Fe; part of the insulation & insulating jacket is missing in the upper part of the cylinder.
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material legs
mild steel
