S92296

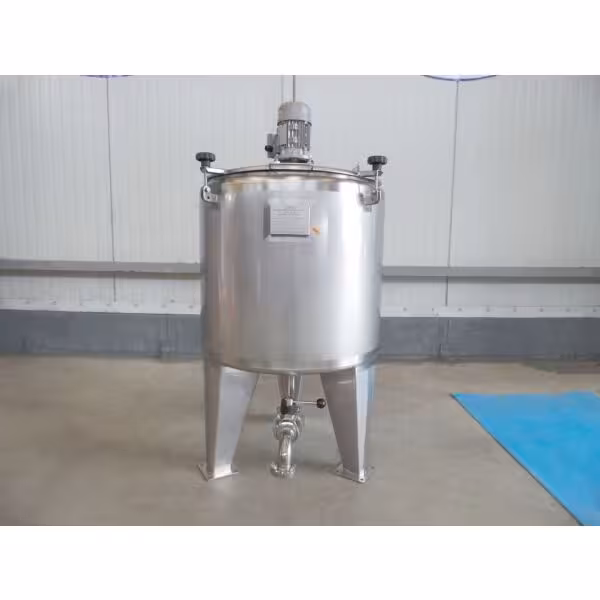

Brand new 200 liter vessel, AISI316 (agitator optional, upon request)
€5,345.00
incl. VAT
€6,360.55
packaging costs:
€140.00
Price per piece, excl. VAT
4 pieces on stock
Unterlagen vorhanden
General Information
location
external warehouse
condition
used
Vessel
volume
200 liter
max. allowable working temperature
80 °C
specific weight of the medium
1.2 (to/m³)
lower bottom
cone shaped bottom
upper bottom
geschweißter Deckel mit Klappsegment
construction
standing
stand type
legs
quantity legs
3 Piece
Technical Characteristics
ground clearance
250 mm
diameter inside
670 mm
diameter outside
676 mm
cylindrical height
550 mm
total height
1.118 mm
Wall thickness lower bottom
3 mm
wall thickness cylinder
3 mm
wall thickness of upper bottom
3 mm
Equipment
Technical documentation
drawing
nameplate
outlet
DN40 DIN 11851
remarks
Pay attention: agitators only shown as an example and not included in the price! Price for the displayed propeller agitator (0.25 KW / 1500 rpm / 400 V): 1300 €.; other attachments, such as outlet valve, spray ball ect. possible on request at extra cost
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
First Agitator
agitator
agitator flange
