Italian Sku S11500

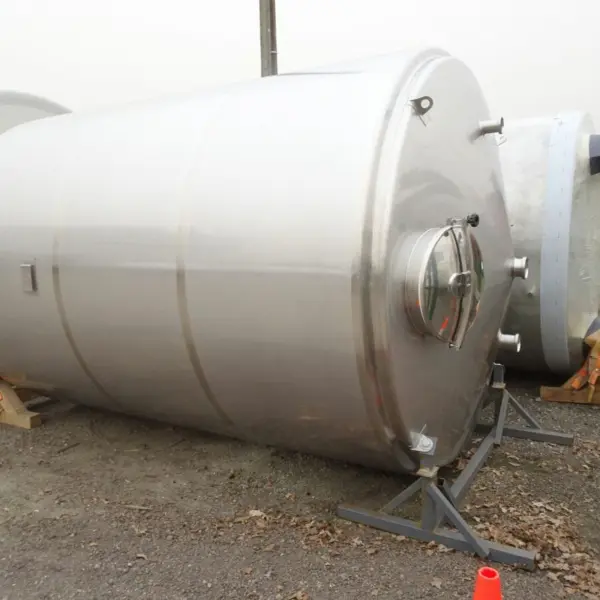

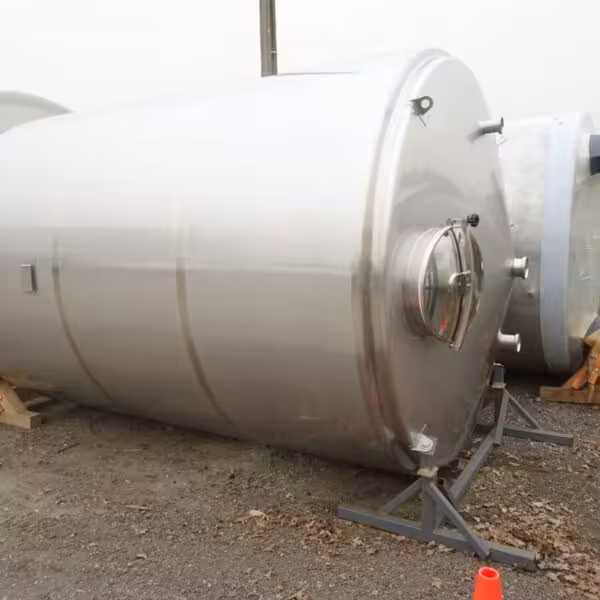

Brand new 15300 liter heat/coolable mixing tank with welded insulation jacket, AISI316
€30,500.00
€36,295.00 incl. VAT
Price per piece, excl. VAT
2 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
external warehouse
condition
brand new
Vessel
volume
15.300 liter
max. allowable working temperature
130 °C
specific weight of the medium
1,0 (to/m³)
bottom
cone shaped bottom
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
110 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
welded
Insulation material
mineral wool
material insulation jacket
stainless steel
insulation thickness
50 mm
Technical Characteristics
ground clearance
306 mm
diameter inside
2.359 mm
diameter outside
2.480 mm
cylindrical height
3.250 mm
total height
4.380 mm
Wall thickness lower bottom
3 mm
wall thickness cylinder
2.5 mm
wall thickness of upper bottom
2 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 500)
outlet
DN65 DIN 11851
remarks
Pressure specification double jacket refers to heating / cooling with water (steam pressure 0,49 bar)
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material double jacket
AISI304 (V2A) 1.4301
