S11005

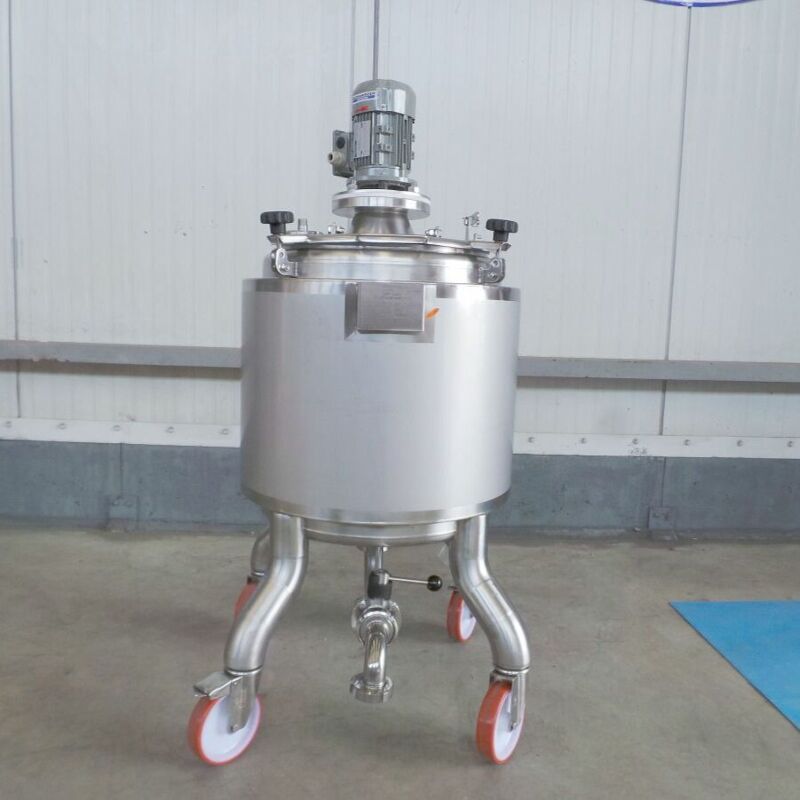

Brand new 150 liter heat-/coolable mobile vessel, Aisi 316 (agitator optional, upon request)
€7,680.00
incl. VAT
€9,139.20
packaging costs:
€140.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
location
external warehouse
condition
brand new
Vessel
volume
150 liter
max. allowable working temperature
100 °C
specific weight of the medium
1.2 (to/m³)
lower bottom
cone shaped bottom
construction
standing
stand type
moveable on wheels
quantity legs
4 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
100 °C
Temperature control cylinder (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
insulation thickness
47 mm
Technical Characteristics
ground clearance
183 mm
diameter inside
406 mm
diameter outside
700 mm
cylindrical height
375 mm
total height
1.450 mm
Wall thickness lower bottom
2 mm
wall thickness cylinder
2.5 mm
wall thickness of upper bottom
5 mm
Equipment
Technical documentation
drawing
nameplate
outlet
DN40 DIN 11851
remarks
Pay attention: agitators only shown as an example and not included in the price! Price for the displayed propeller agitator (0.25 KW / 1500 rpm / 400 V): 1500 €.; other attachments, such as outlet valve, spray ball ect. possible on request at extra cost
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
First Agitator
agitator
agitator flange
