Item no. 8130

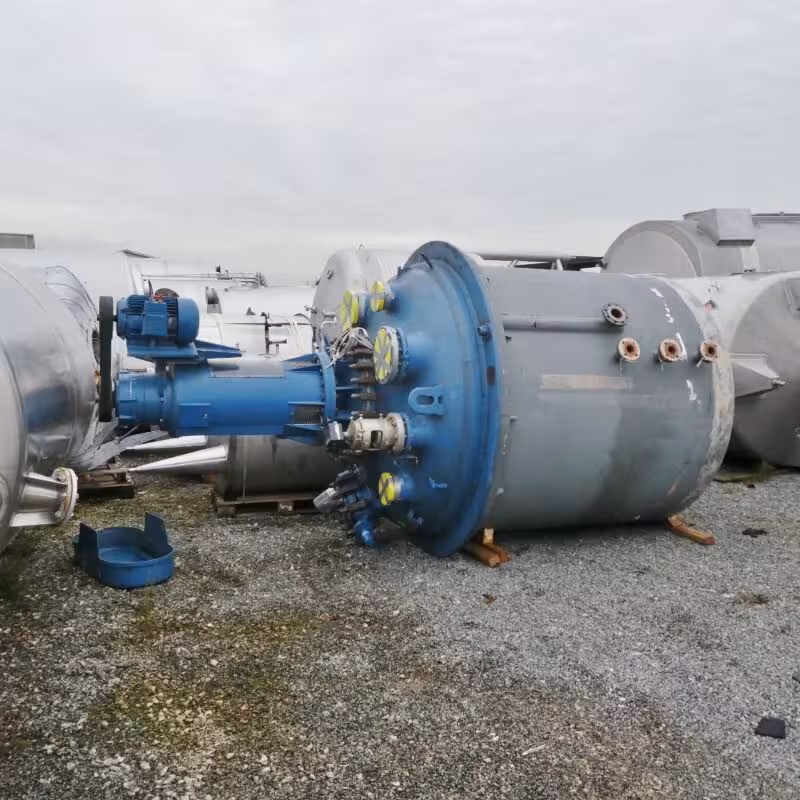

7385 liter De Dietrich glass-lined reactor CE 6300
€18,000.00 €21,420.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
manufacturer
location
Bremen
condition
used
Vessel
volume
7.385 liter
vacuum
1,0 bar
max. allowable working pressure
6,0 bar
max. allowable working temperature
200 °C
construction
hanging
support type
ring
double jacket
heating/cooling
available
Volume double jacket
735,0 liter
max. allowable working overpressure (dj)
7.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
200 °C
temperature control cylinder (dj)
double jacket
Temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
2.000 mm
diameter outside
2.100 mm
total height
4.950 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom
nameplate
technical equipment
lifting lugs
outlet
available
outlet
150 mm
remarks
Manhole DN 350/450; further technical documentation available
latest application
Pharmaceutical chemistry
Material Composition
material of heads
Carbon steel (Fe)
material cylinder
Carbon steel (Fe)
material in contact w/ medium
enamel
material double jacket
Carbon steel (Fe)
Agitator
power
3.07 - 11.2 KW
agitator
blade agitator
voltage
380 Volt
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
agitator positioning
centrically in the upper bottom
agitator features
Stainless steel mixing shaft and mixing blades
