8075

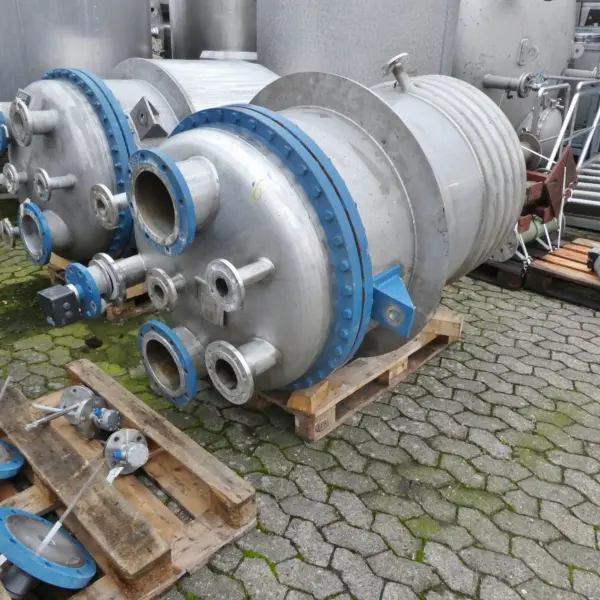

1300 liter heat-/coolable pressure tank, Aisi 316
€6,450.00
incl. VAT
€7,675.50
Price per piece, excl. VAT
3 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
Steinemann
location
Bremen
condition
used
Vessel
volume
1.300 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
upper bottom
screwed cover
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
23,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Technical Characteristics
diameter inside
990 mm
cylindrical height
1.330 mm
total height
2.100 mm
Wall thickness lower bottom
3 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
4.1 mm
Equipment
Technical documentation
drawing
nameplate
outlet
flange DN80
notice
some residues of previous content
remarks
2 support brackets made of Aisi 304 (contact surface the other way around; see photos); flanges partly made of Fe; further techn. documents available; In some cases, connections are flanged in the top bottom or at the outlet; using these connections would increase the overall height accordingly
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4571
material temperatur control system
AISI 304 (V2A) 1.4306
