7562

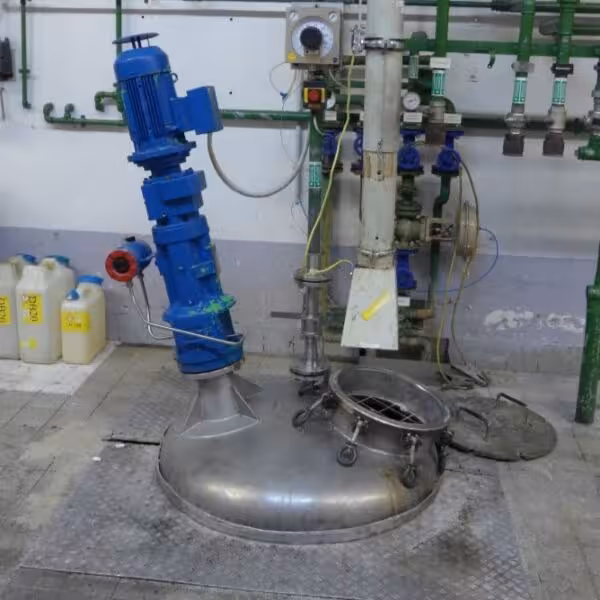

1100 liter heat-/coolable tank, Aisi 316

€3,850.00
price per piece
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
1.100 liter
construction
hanging
double jacket
double jacket
available
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
1.040 mm
diameter outside
1.090 mm
cylindrical height
1.200 mm
total height
3.200 mm
Equipment
manhole
in the upper bottom (Ø 400)
outlet
flange DN40
notice
manhole cover plated
remarks
former support brackets were cut off by dismantling and are not available anymore; 1 heating connection cut off; tank with stronger adhesions
latest application
adhesive production
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4429
material double jacket
AISI304 (V2A) 1.4301
Agitator
manufacturer stirrer
Stelzer
power
2.2 KW
output speed
274 rpm
agitator
cross blade stirrer
stirrer seal
mechanical seal with thermosyphon
voltage
230/400 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
eccentrically in the upper bottom
agitator features
1 stirrer partly bent (see pictures)
