Italian Sku 10857

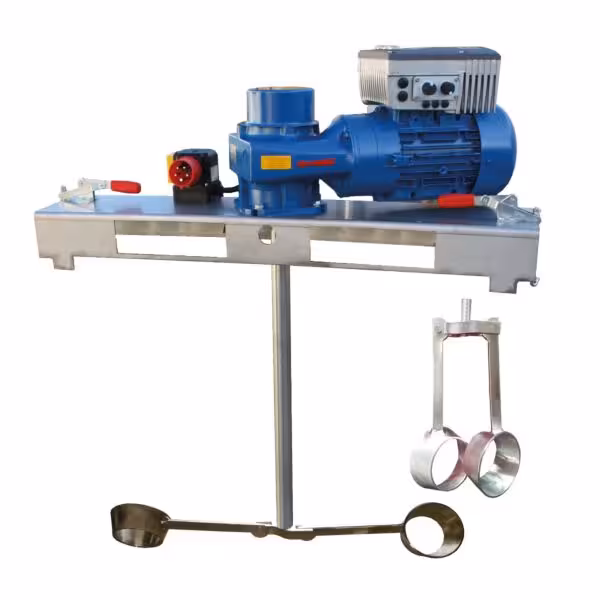

Agitatore IBC / miscelatore con riduttore senza fine e pale a cono pieghevoli (adatto per muletto)
5.450,00 €
6.485,50 € IVA inclusa
Prezzo cadauno, IVA escl.
3 pezzi a maggazino
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Generali Informazioni
Posizione
Bremen
Stato
nuovo
Varie
- Motor and gear unit in latest aluminium technology, manufactured by Getriebebau NORD
- Solid plug-in agitator shaft mounted in the hollow shaft gear unit
- cup stirrer IBC-BEC-600 Ø 600mm screwed in at the end of the agitator shaft
- Stirring arms can removed without tools for easy cleaning. No screws in the product space
- Power: 2,2 kW
- Speed: 0-300 rpm
- Voltage: 3PH 400V 50Hz.
- Compact frequency inverter IP 55 NORD Input 3 PH 400 V 50 Hz.
- Potentiometer for variable speed control. 2,2 KW 0-300 (0-50 Hz) rpm.
- Material in contact with medium: AISI 316
- Agitator weight: ca. 20 kg
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks and two holes for forklift forks
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
Agitatori
Documentazione tecnica
Disegno ,Istruzioni per il montaggio
Elemento miscelante
Agitatore a bicchiere
Motore
0-270 rpm
Voltaggio
400 Volt
Potenza
2,2 KW
Materiale a contatto con il prodotto
AISI316 1.4401 / 1.4404
targa identificativa
Viscosità
20.000 mPas
diametro albero
40 mm
diametro elemento miscelante
600 mm
- Motor and gear unit in latest aluminium technology, manufactured by Getriebebau NORD
- Solid plug-in agitator shaft mounted in the hollow shaft gear unit
- cup stirrer IBC-BEC-600 Ø 600mm screwed in at the end of the agitator shaft
- Stirring arms can removed without tools for easy cleaning. No screws in the product space
- Power: 2,2 kW
- Speed: 0-300 rpm
- Voltage: 3PH 400V 50Hz.
- Compact frequency inverter IP 55 NORD Input 3 PH 400 V 50 Hz.
- Potentiometer for variable speed control. 2,2 KW 0-300 (0-50 Hz) rpm.
- Material in contact with medium: AISI 316
- Agitator weight: ca. 20 kg
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks and two holes for forklift forks
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
