Sku K0190

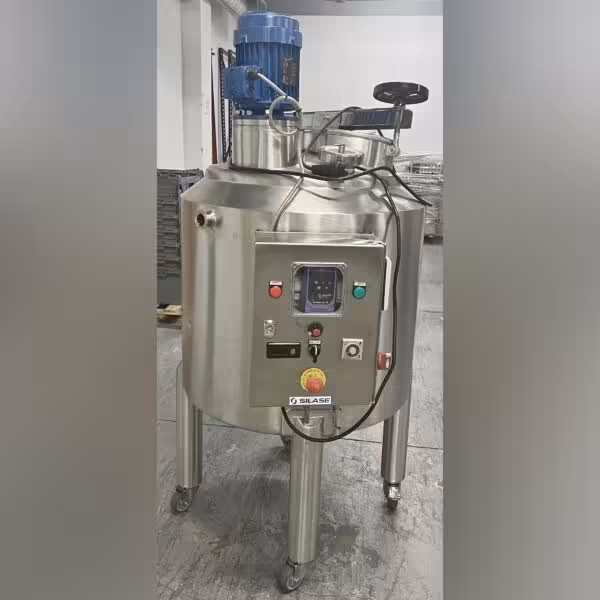

Unused 150 liter heatable/coolable pressure vessel made of stainless steel 316 with propeller agitator
Price on request
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
Outdoor storage
condition
unused
Vessel
volume
150 liter
max. excess pressure
1.5 bar
max. allowable working temperature
70 °C
construction
standing
stand type
moveable on wheels
quantity legs
4 Piece
double jacket
max. allowable working overpressure (dj)
1.5 bar
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
insulation thickness
50 mm
Technical Characteristics
diameter inside
610 mm
diameter outside
770 mm
total height
1.650 mm
year of construction
2022
Equipment
manhole
handhole
nameplate
technical equipment
control cabinet (without guarantee)
outlet
available
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
output speed
1500 rpm
agitator
propeller
agitator positioning
eccentrically in the upper bottom
