14332

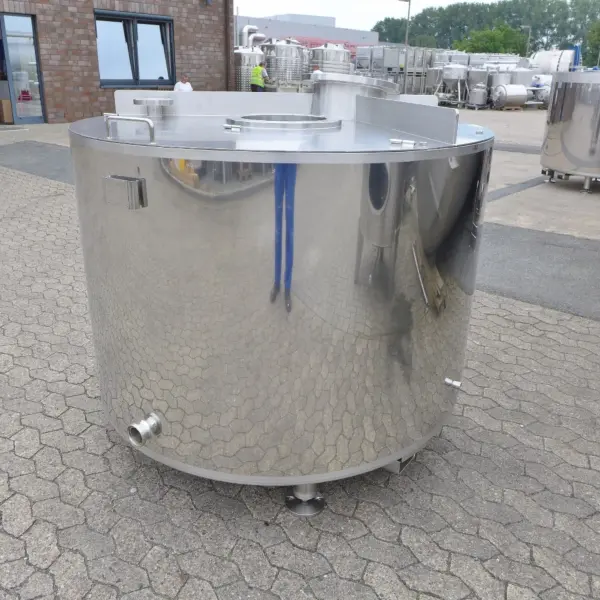

Unused 1050 liter heat-/coolable tank, Aisi 316
€14,750.00
incl. VAT
€17,552.50
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
unused
Vessel
Hersteller
Behälter KG Bremen
volume
1.050 liter
max. allowable working temperature
180 °C
specific weight of the medium
1.3 (to/m³)
lower bottom
flat bottom with slope
upper bottom
screwed cover with hinged segment
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
2.0 bar
max. allowable working temperature (dj)
180 °C
Temperature control cylinder (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
insulation thickness
100 mm
Technical Characteristics
diameter inside
1.350 mm
diameter outside
1.550 mm
total height
1.530 mm
Equipment
Technical documentation
drawing
nameplate
remarks
Outlet DN 60 DIN 11851; reinforcement ribs inside under the upper bottom (removable); 2 fork pockets on the outside of the lower bottom
Material Composition
surface outside
high-gloss
material in contact w/ medium
AISI316 (V4A) 1.4571
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
First Agitator
agitator
agitator flange
agitator positioning
centrically in the upper bottom
agitator features
1 additional agitator flange eccentrically in the upper bottom
