Sku 10840

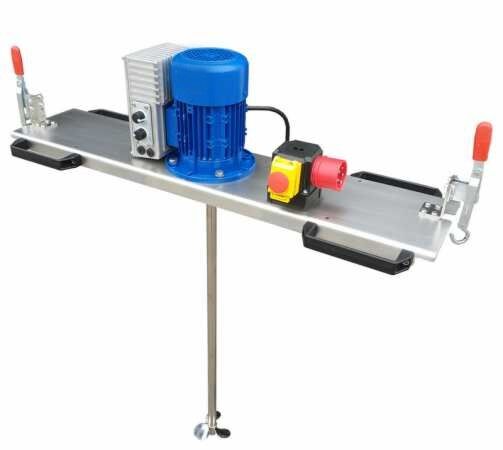

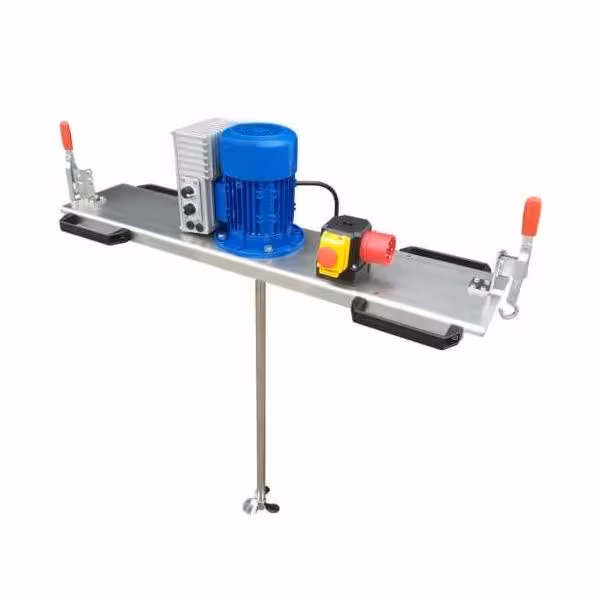

IBC agitator / high-speed container mixer with propeller stirrer at variable speed
€2,390.00
€2,844.10 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
location
Bremen
condition
brand new
Other
- High-speed mixer with firm, non-removable agitator-shaft
- 3-blade propeller Ø138mm (unscrewable)
- Propeller mirror polished, made of one piece
- Output: 0,75 kw
- Engine speed: 0-1410 rpm (variable)
- Voltage: 3PH 400V 50Hz IE2
- Compact frequency inverter IP 55 NORD: release switch and potentiometer for stepless engine speed regulation (0-50 Hz) 0-1410 rpm
- Material in contact with medium: AISI 316 (1.4404)
- Agitator weight: ca. 17 kg
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks and 2 carrying handles
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
Agitators
Technical documentation
drawing,assembly instruction
agitator
propeller
output speed
0-1410 rpm
voltage
400 Volt
power
0,75 KW
nameplate
max. viscosity
600 mPas
blade diameter
138 mm
- High-speed mixer with firm, non-removable agitator-shaft
- 3-blade propeller Ø138mm (unscrewable)
- Propeller mirror polished, made of one piece
- Output: 0,75 kw
- Engine speed: 0-1410 rpm (variable)
- Voltage: 3PH 400V 50Hz IE2
- Compact frequency inverter IP 55 NORD: release switch and potentiometer for stepless engine speed regulation (0-50 Hz) 0-1410 rpm
- Material in contact with medium: AISI 316 (1.4404)
- Agitator weight: ca. 17 kg
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks and 4 carrying handles
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
