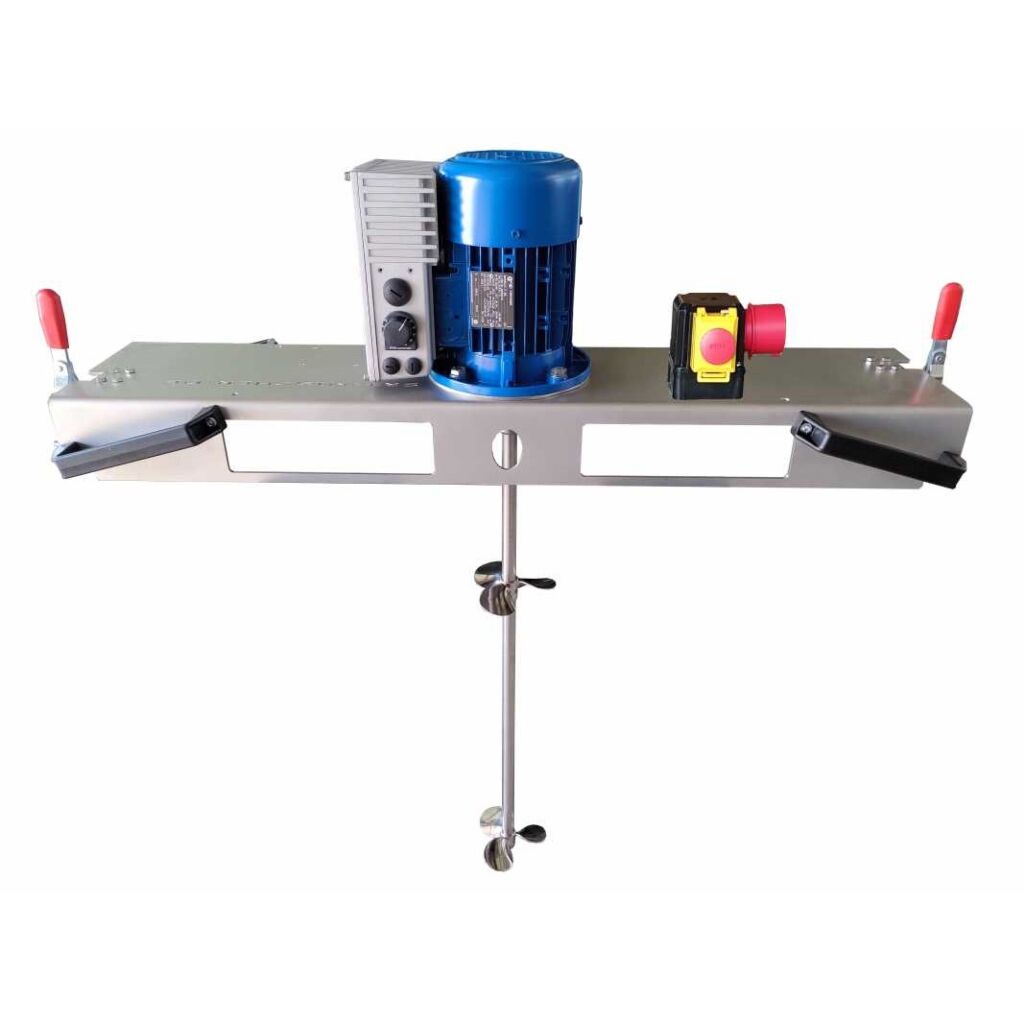

IBC agitator / high-speed container mixer with double propeller stirrer at variable speed (forklift version)
Sku 14782

IBC agitator / high-speed container mixer with double propeller stirrer at variable speed (forklift version)

€2,880.00 €3,427.20  incl. VAT
Price per piece, excl. VAT
2 pieces on stock
packaging costs: €85.00

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Other
  • High-speed mixer with firm, removable agitator-shaft (coupling)
  • 3-blade propeller Ø138mm at the bottom of the shaft (unscrewable)
  • Additional 3-blade propeller Ø138mm mounted on the shaft (height adjustable)
  • Propeller mirror polished, made of one piece
  • Output: 0,75 kw
  • Engine speed: 0-1415 rpm (variable)
  • Voltage: 3PH 400V 50Hz IE2
  • Compact frequency inverter IP 55 NORD: release switch and potentiometer for stepless engine speed regulation (0-50 Hz) 0-1415 rpm
  • Material in contact with medium: AISI 316 (1.4404)
  • Agitator weight: ca. 17 kg
  • Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks, 4 side-mounted carrying handles and with two holes for forklift forks
  • Suitable for IBC-1000 liter
  • CEE-plug switch on the traverse with no-voltage release and phase inverter
Agitators
Technical documentation
drawing,assembly instruction
agitator
propeller
output speed
0-1415 rpm
voltage
400 Volt
power
0,75 KW
nameplate
max. viscosity
600 mPas
blade diameter
138 mm
  • Schnellmischer mit massiver, abnehmbarer Rührwelle (Kupplung)
  • 3-Flügel-Mischpropeller Ø138mm am Wellenende eingeschraubt
  • Zusätzlicher 3-Flügel-Mischpropeller Ø138mm am Wellenende eingeschraubt
  • Mischpropeller hochglanzpoliert und aus einem Guss
  • Leistung: 0,75 KW
  • Drehzahl: 0-1410 UPM (variabel)
  • Spannung: 3PH 400V 50Hz IE2
  • Kompakter Frequenzumrichter IP 55 NORD: Freigabeschalter sowie Potentiometer zur stufenlosen Drehzahlregelung (0-50 Hz) 0-1410 UPM
  • Werkstoff produktberührt: 1.4404 (V4A)
  • Rührwerksgewicht ca.: 17 Kg
  • Edelstahltraverse 1.4301 (V2A), 4mm Stärke, mit 2 Öffnungen für Staplergabeln, 2 Spannhaken und 2 Tragegriffen
  • Geeignet für z.B. 1.000 Liter IBC-Container
  • CEE-Steckerschalter auf der Traverse mit Nullspannungsauslöser sowie Phasenwender
