Sku 13839

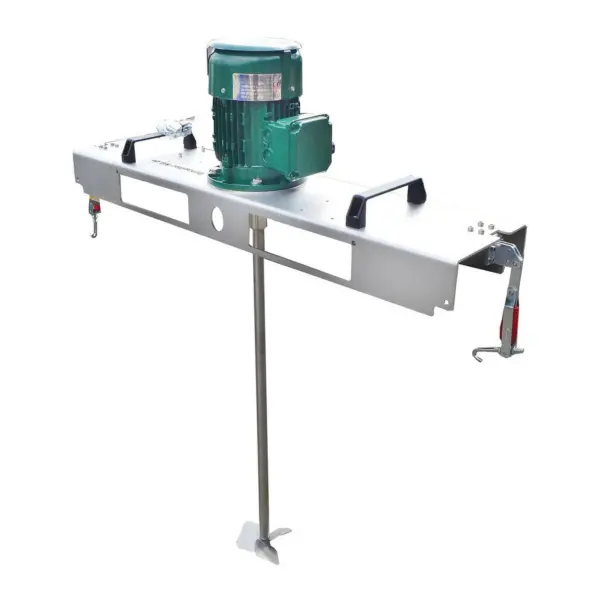

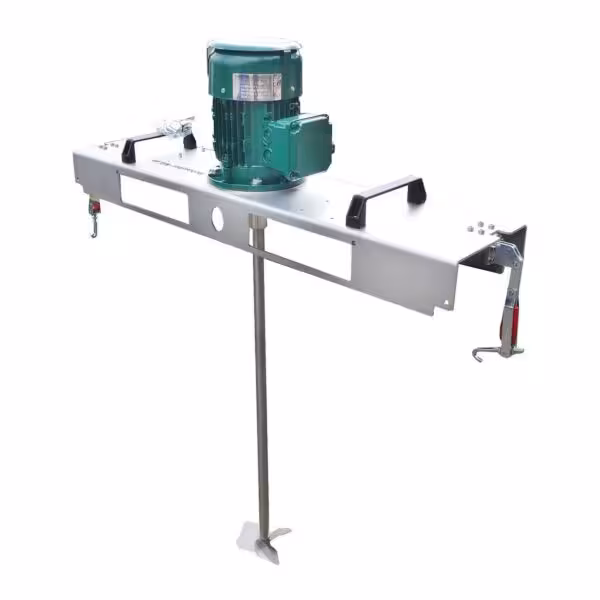

ex-proof IBC agitator / high-speed ATEX container mixer with propeller stirrer (forklift version)
€3,980.00 €4,736.20 incl. VAT
Price per piece, excl. VAT
2 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
location
Bremen
condition
brand new
Other
- Ex-zone 1, temperature class T3
- Drive: hollow shaft motor 1,1 kW, 1.500 rpm, 400 V 50Hz, IP 55, ISO class F, E(Ex) eIIT3, with protective cover
- Mounting flange: Ø200 mm, material: cast aluminium / painted
- Painting: primed and painted RAL 6005 (mooss green)
- Bearing shaft: 2 bearings in the motor housing
- Agitator shaft: 1-part solid shaft with plug-in coupling, shaft length 950 mm, material V4A (316SS, 1.4571, 1.4401)
- Agitator: 1x AD138, 3-blade propeller with optimized pump performance, removable from the shaft, material V4A (316SS, 1.4571, 1.4401)
- A flat opening of Ø140 mm is required to insert the agitator
- Stainless steel traverse AISI 304 (V2A),, 4 mm thickness, with 2 openings for forklift forks, 2 clamping hooks and 2 carrying handles
- Suitable for 1.000 Liter IBC container
- Attention! This agitator needs to be assembled and wired on site (cables/switch box not included in delivery scope
Agitators
Technical documentation
drawing,operation manual
agitator
propeller
output speed
1500 rpm
voltage
400 Volt
power
1.1 KW
material in contact w/ medium
AISI 316 (V4A)
nameplate
max. viscosity
200 mPas
shaft length
950 mm
shaft diameter
25 mm
blade diameter
138 mm
