Sku 13840

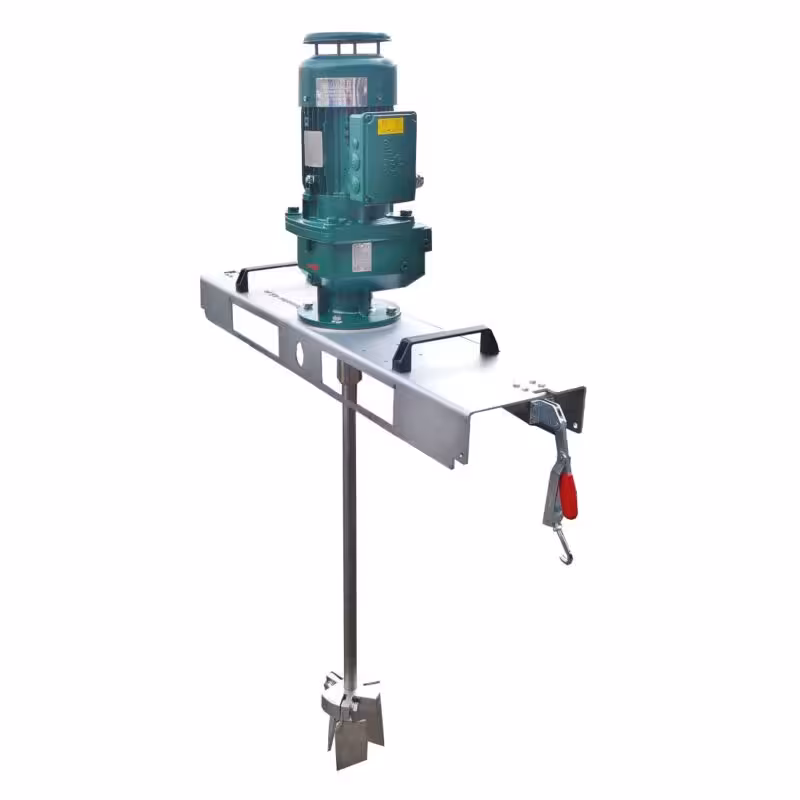

ex-proof IBC agitator / geared ATEX container mixer with foldable crossblade stirrer (forklift version)
€4,680.00 €5,569.20 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
location
Bremen
condition
brand new
Other
- Ex-zone 1, temperature class T3
- Drive: helical gear motor 1.5 kW, approx. 200 rpm, 400 V 50 Hz, IP 55, ISO class F, E (Ex) eIIT3, with protective cover
- Mounting flange: Ø200 mm, material: cast aluminium / painted
- Painting: primed and painted RAL 6005 (mooss green)
- Bearing shaft: 2-fold bearings in the gear housing
- Agitator shaft: 1-part solid shaft with plug-in coupling, shaft length 900 mm, material AISI 316 (V4A, 1.4571, 1.4401)
- Agitator: 1 x GD400, 3-blade folding propeller Ø400 (138) mm, material: AISI 316 (V4A, 1.4571, 1.4401)
- A flat opening of Ø140 mm is required to insert the agitator
- Stainless steel traverse AISI 304 (V2A, 1.4301), 4 mm thickness, with 2 openings for forklift forks, 2 clamping hooks and 2 carrying handles
- Suitable for 1.000 Liter IBC container
- Attention! This agitator needs to be assembled and wired on site (cables/switch box not included in delivery scope
Agitators
Technical documentation
drawing,operation manual
agitator
propeller
output speed
200 rpm
voltage
400 Volt
power
1.5 KW
material in contact w/ medium
AISI 316 (V4A)
nameplate
max. viscosity
5.000 mPas
shaft length
900 mm
shaft diameter
27.5 mm
blade diameter
400 mm
