S14730

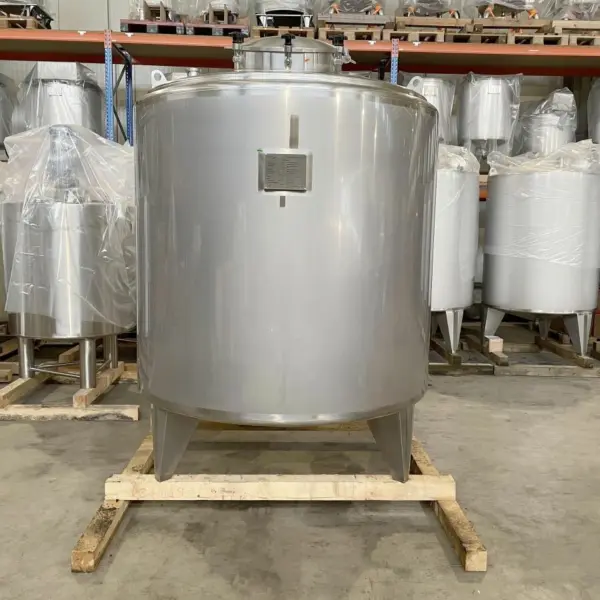

Brandnew 3300 liter heat-/coolable tank, AISI316
€17,950.00
incl. VAT
€21,360.50
packaging costs:
€95.00
Price per piece, excl. VAT
1 on Stock
General Information
location
external warehouse
condition
brand new
Vessel
volume
3.300 liter
max. allowable working temperature
150 °C
max. excess pressure
0,49 bar
vacuum
0.1 bar
specific weight of the medium
1.5 (to/m³)
bottom
cone shaped bottom
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
5.0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
welded
Insulation material
stone wool
material insulation jacket
stainless steel
insulation thickness
50 mm
Technical Characteristics
ground clearance
305 mm
diameter inside
1.594 mm
diameter outside
1.713 mm
cylindrical height
1.500 mm
total height
2.454 mm
Wall thickness lower bottom
4 mm
wall thickness cylinder
4 mm
wall thickness of upper bottom
3 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 500)
nameplate
outlet
DN50 DIN 11851
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material double jacket
AISI304 (V2A) 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
