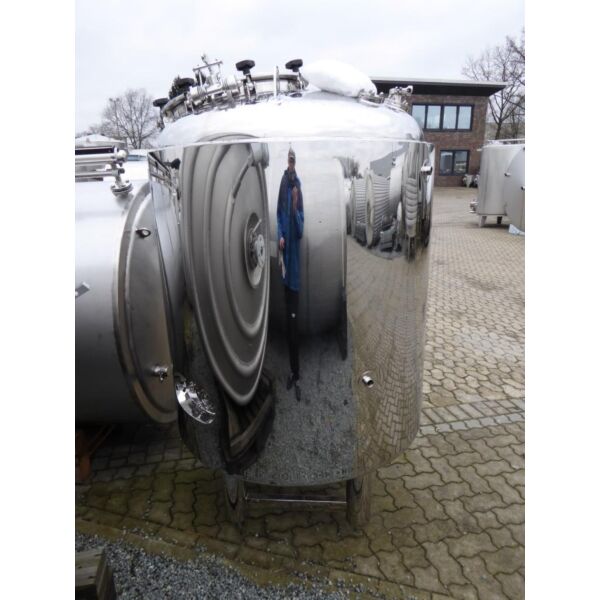

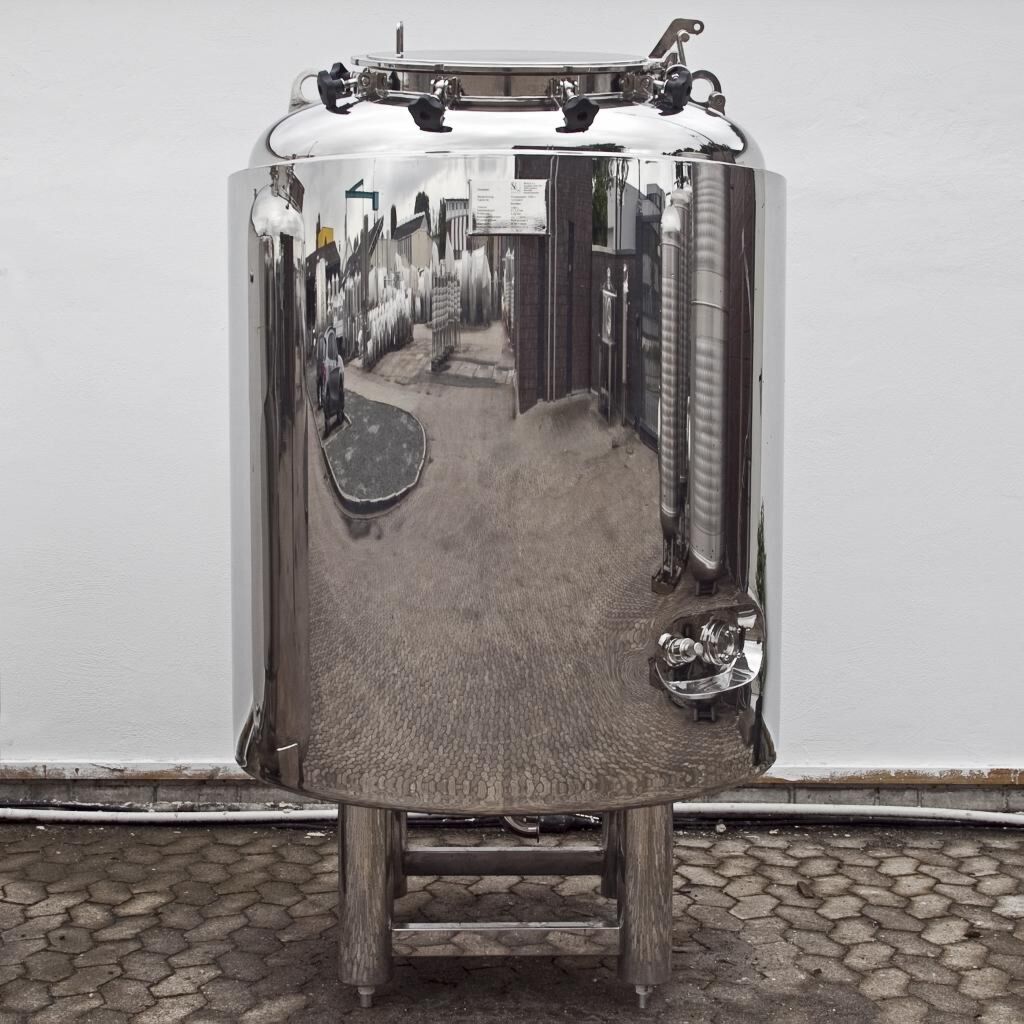

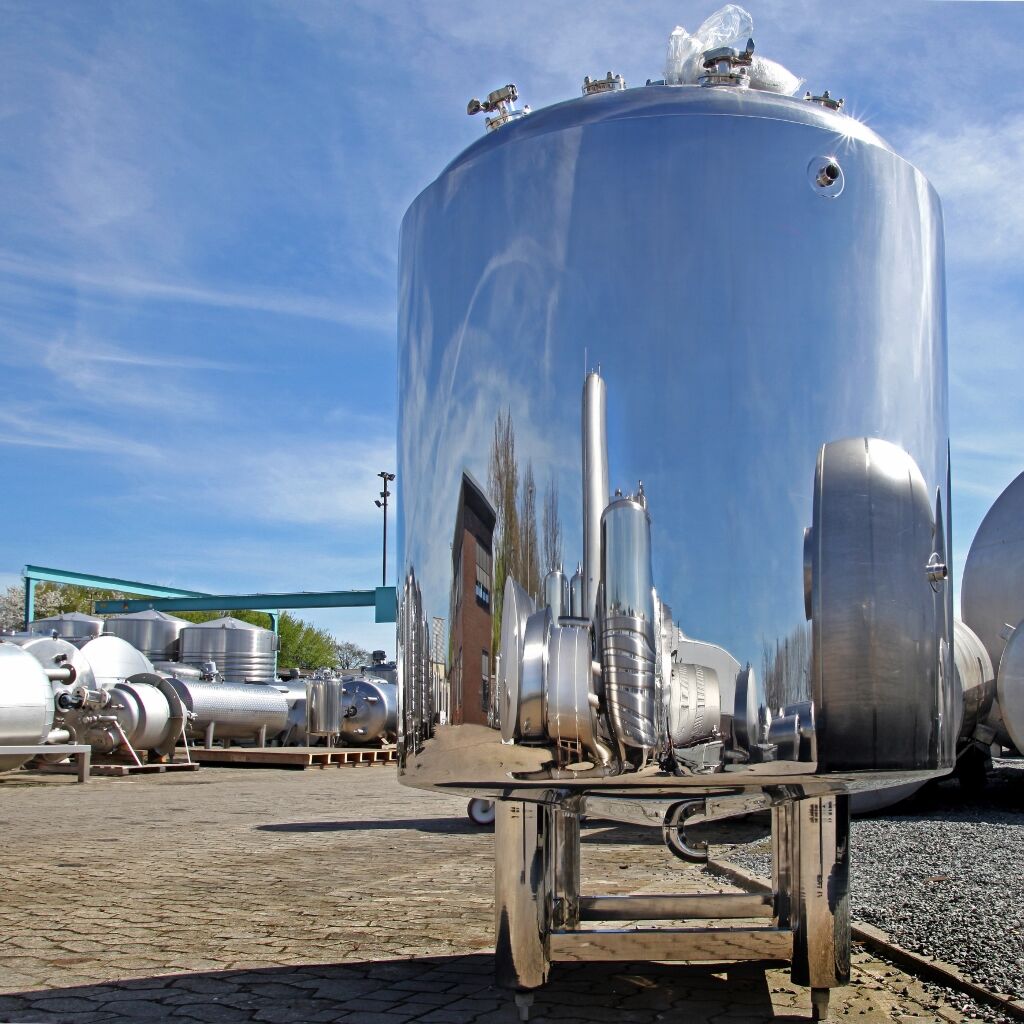

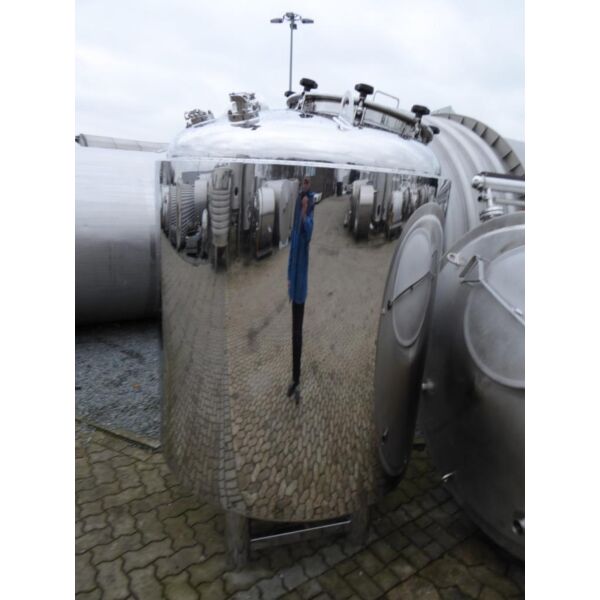

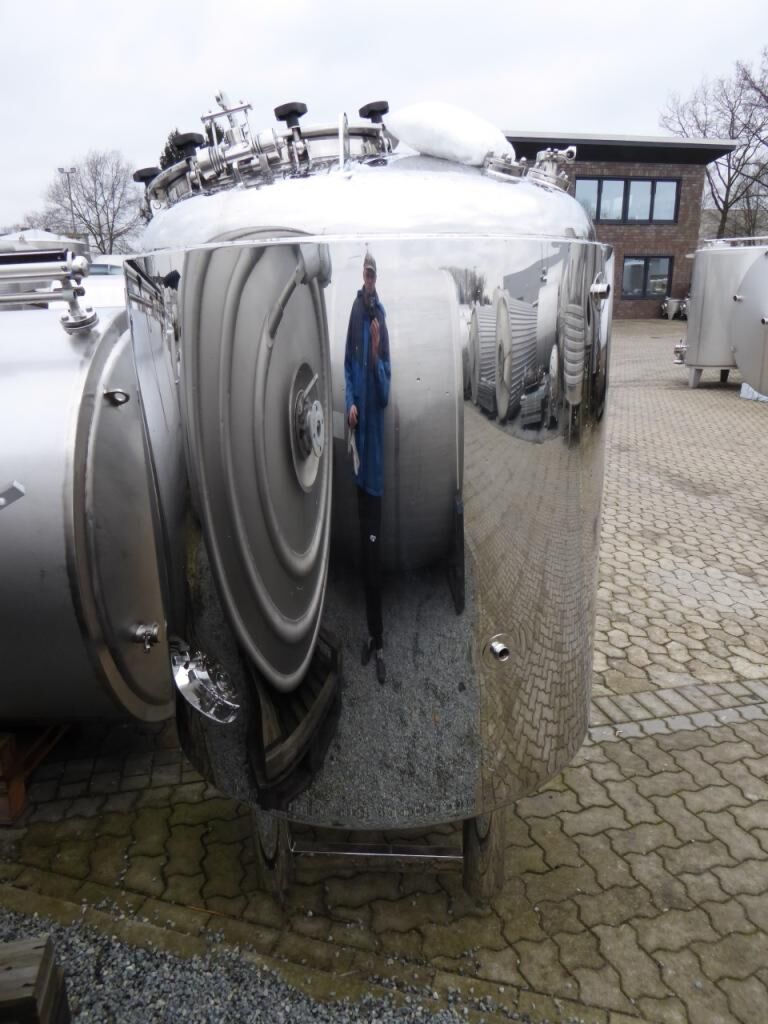

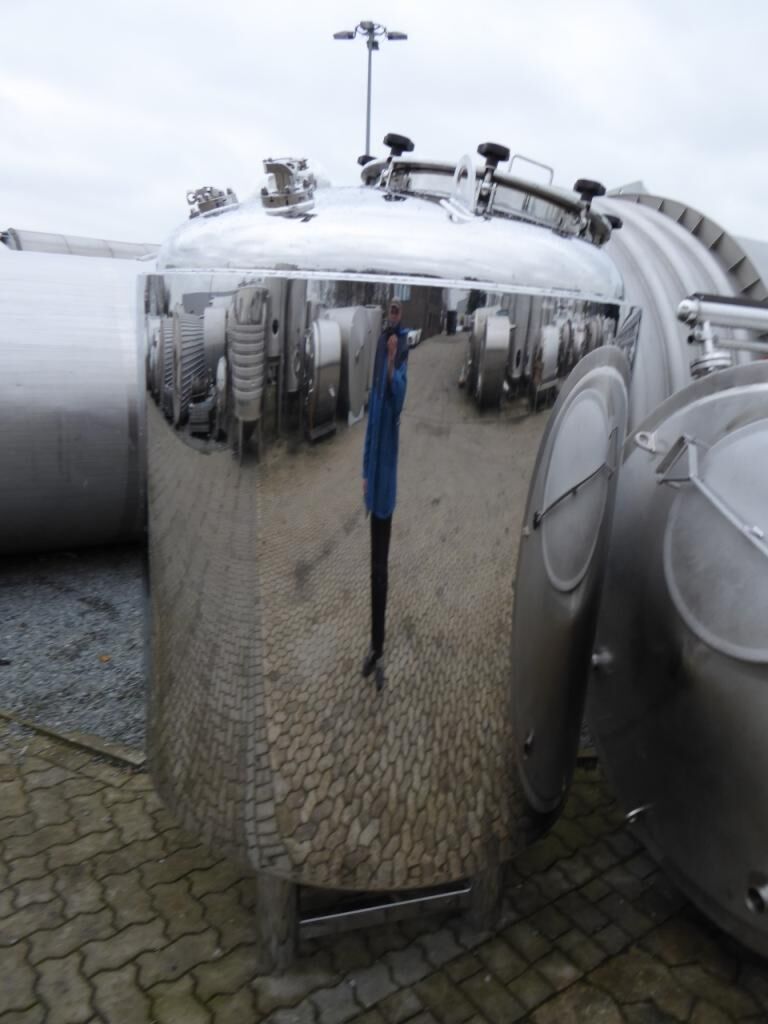

Brand new 1280 liter heat-/coolable pressure tank, AISI 316
Sku 10097

Brand new 1280 liter heat-/coolable pressure tank, AISI 316

€8,900.00 €10,591.00  incl. VAT
Price per piece, excl. VAT
1 on Stock

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
1.280 liter
max. allowable working temperature
130 °C
max. excess pressure
3,00 bar
construction
standing

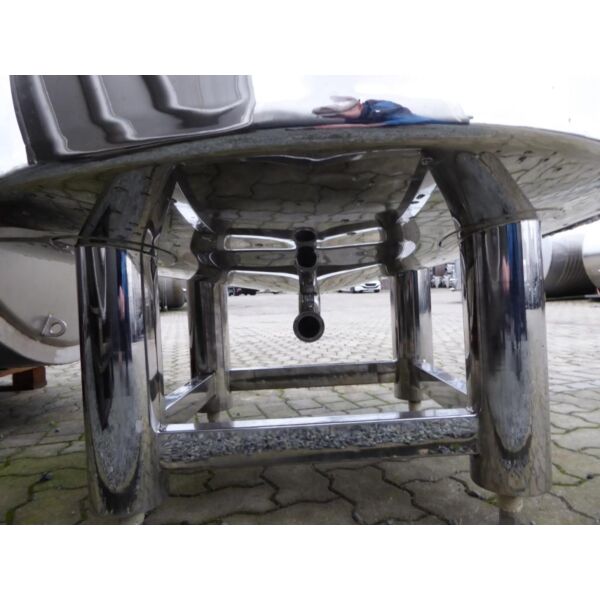

stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
max. allowable working temperature (dj)
95 °C
Temperature control cylinder (dj)
thermoplate
Insulation
insulation
available
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.100 mm
cylindrical height
1.000 mm
total height
2.110 mm
Wall thickness lower bottom
4.0 mm
wall thickness cylinder
3.0 mm
wall thickness of upper bottom
8.0 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,various documents ,certificate of inspection,CE label and declaration of conformity,assembly instruction,operation manual
manhole
in the upper bottom
nameplate
technical equipment

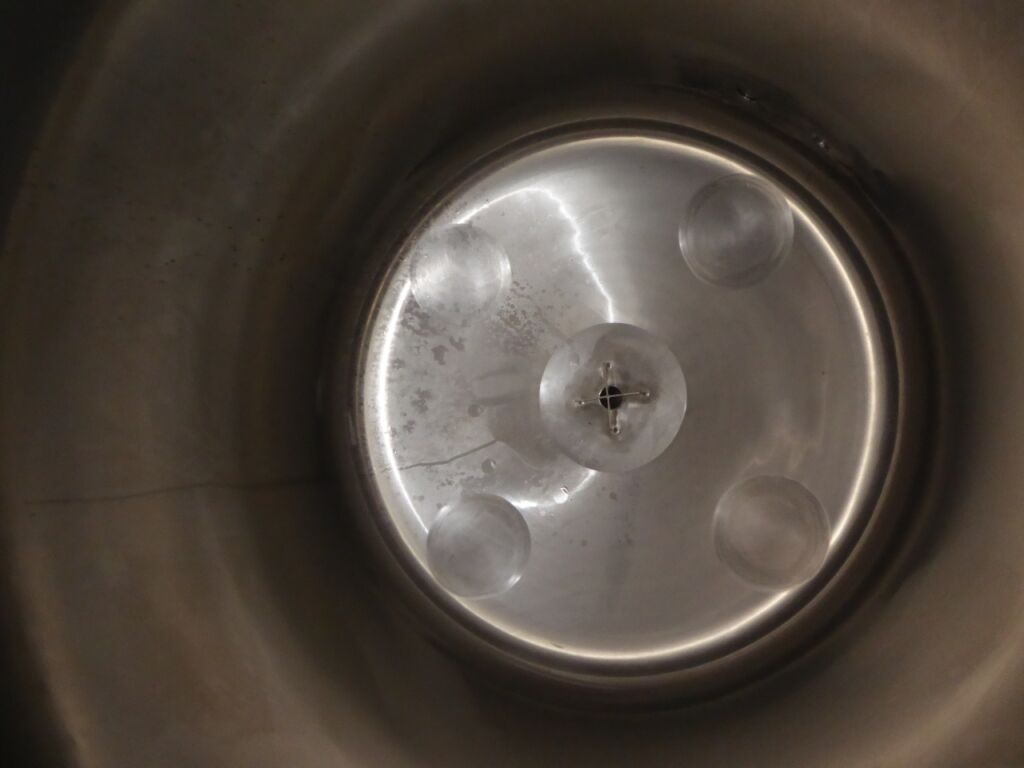

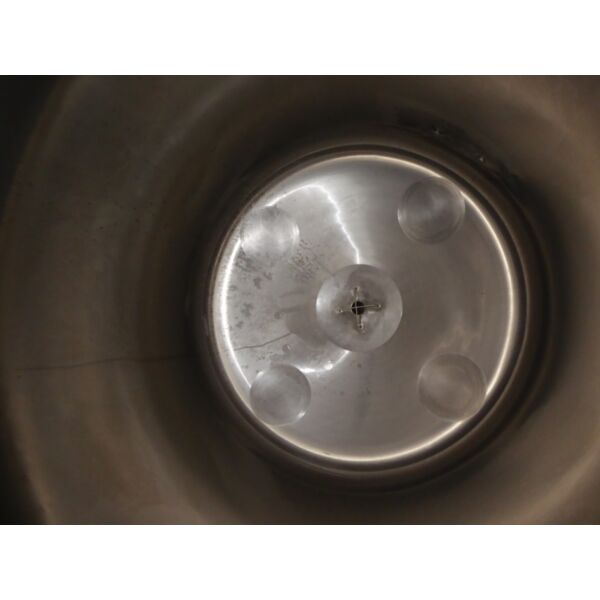

spray ball, crane eyes

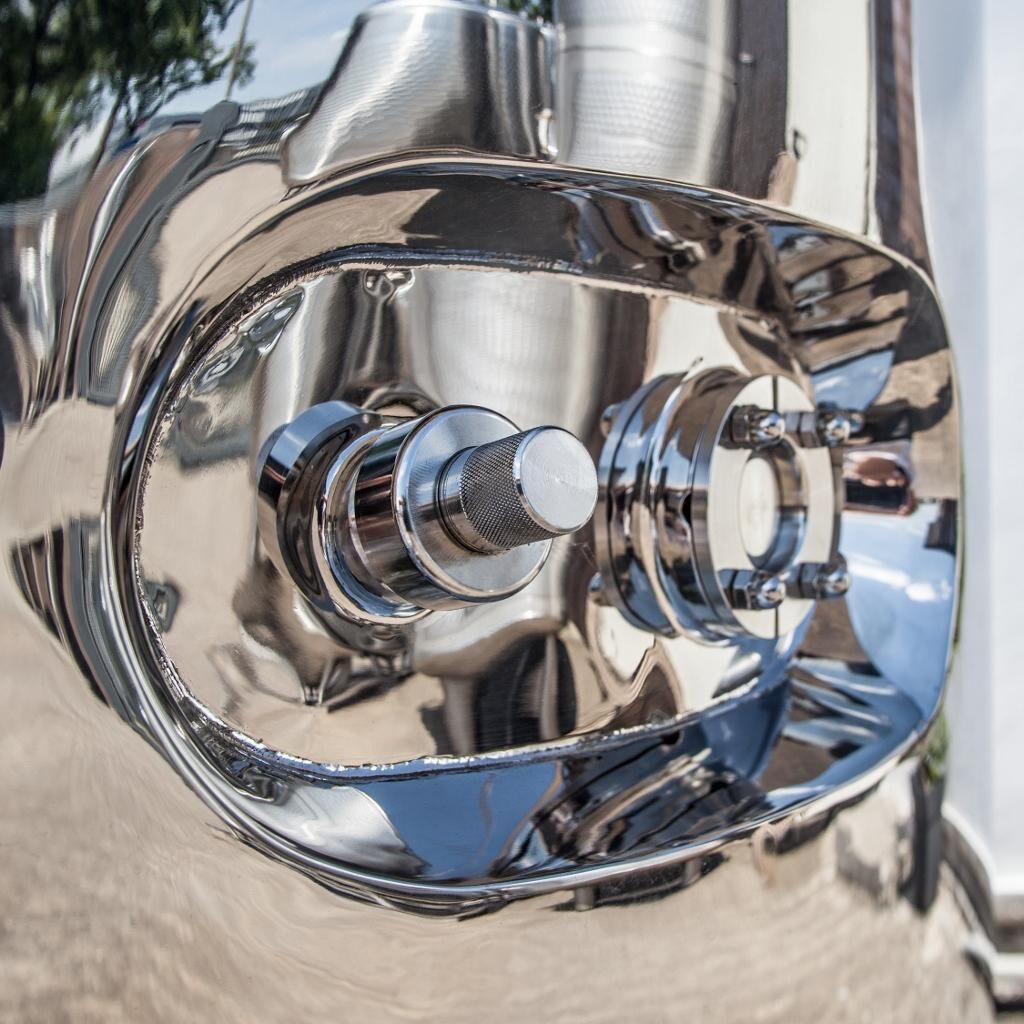

fittings
sleeve socket, screw neck
outlet
available
remarks
Druckgeräterichtlinie 97/23/EG Anhang III Modul H/H1 Werkstoffatteste 3.1 B Durchstrahlungsprüfung der Schweissnähte (2%)
Material Composition
surface outside
polished
surface inside
grinded
material in contact w/ medium
AISI316 1.4401 / 1.4404
material double jacket
AISI 304 1.4301
material legs
stainless steel
