Italian Sku 15908

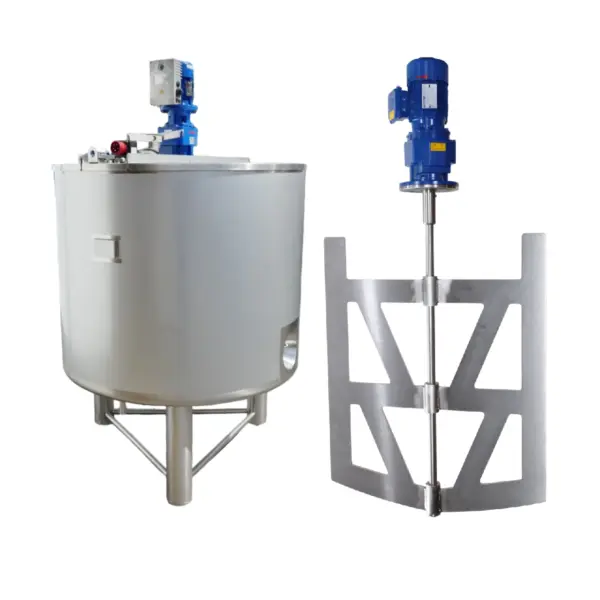

Brand new 1169 liter heat-/coolable agitator tank, Aisi 316 (type FOT) with anchor agitator (Aisi 304)
€20,500.00
€24,395.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
Bremen
condition
brand new
Vessel
Manufacturer
Behälter KG Bremen
volume
1.169 liter
max. allowable working temperature
100 °C
specific weight of the medium
1.3 (to/m³)
upper bottom
agitator traverse with hinged cover
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
2.5 bar
max. allowable working temperature (dj)
140 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
insulation thickness
80 mm
Technical Characteristics
diameter inside
1.192 mm
diameter outside
1.360 mm
cylindrical height
1.000 mm
total height
2.250 mm
Wall thickness lower bottom
4 mm
wall thickness cylinder
4 mm
Equipment
Technical documentation
drawing
technical equipment
ventilation, crane eyes
outlet
DN50 DIN 11851
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
First Agitator
power
0.75 KW
output speed
0 - 12 rpm
agitator
anchor agitator
voltage
400 Volt
agitator positioning
centrically in the upper bottom
agitator features
Attention: Stirring element of the anchor agitator made of 1.4301 (Aisi 304; on request the anchor agitator could also be supplied in Aisi 316 for an additional charge);1 further agitator hole slightly eccentric in the agitator cross member
