Sku 12041

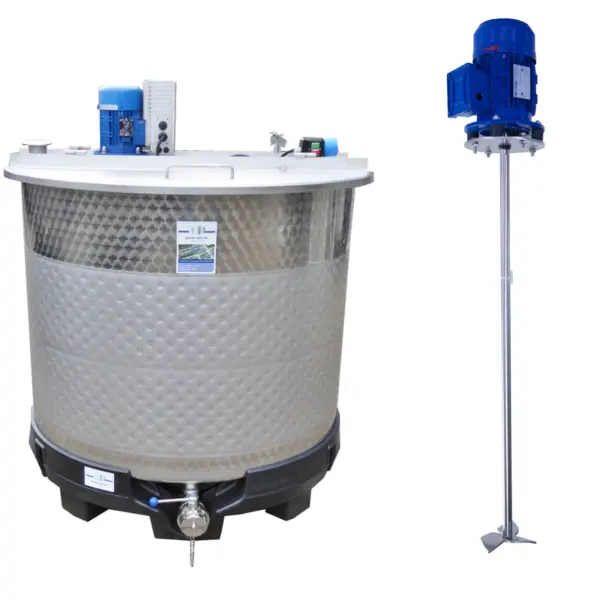

Brand new 1150 liter heat-/coolable agitator tank with high-speed propeller mixer (type SDE)

€7,200.00 €8,568.00  incl. VAT
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
1.150 liter
max. allowable working temperature
80 °C
upper bottom
agitator traverse with hinged cover
construction
standing
stand type
PE-base
double jacket
double jacket
available
Volume double jacket
3.5 liter
max. allowable working overpressure (dj)
5.0 bar
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
thermoplate
Technical Characteristics
diameter inside
1.200 mm
cylindrical height
938 mm
total height
1.550 mm
Equipment
Technical documentation
drawing,CE label and declaration of conformity,assembly instruction,operation manual
nameplate
technical equipment
ventilation, butterfly valve
outlet
DN50 DIN 11851
Material Composition
surface outside
marbled
surface inside
high-gloss
material in contact w/ medium
AISI304 1.4301
material temperatur control system
stainless steel
material legs
plastic
First Agitator
power
0,75 KW
output speed
0-1500 rpm
agitator
propeller
voltage
400 Volt
agitator positioning
eccentrically in the upper bottom
agitator features
frequency converter
max. viscosity
600 mPas

 1 pcs. brand new, jacketed Tank with Agitator

- material: st.st. (V2A=AISI304)

1.4301



- type:



SDE/S



- incl. CE marking and declaration of conformity

- incl. operation manual, optionally in German or English

- cyl., vertical construction
   on loose PE-transport-and bearing base
   (with fork-lift and lift truck access from 2 sides)

- year of construction:



2013



- volume:



1.150

 ltrs.

- diameter:

appr.  1.200

 mm

- cyl. height:

appr.     930

 mm

- ttl. height, incl. agitator

appr.  1.520

 mm

- double jacket (thermo plate) of st.st. for heating/
   cooling around appr. 620 mm of the cyl. length
   (according to the manufacturer the double jacket
   can be operated up to a max. working pressure
   of 5 bar (water); not suitable for steam operation).

- tank covering by means of crossarm
   and 2 hinged covers of st.st.
- outer cyl. surfaces are marbled
- 1 outlet DN 50 DIN 11851 in the bottom

- both cover halves with locking mechanism
- mounted on the cross arm:
  1 CEE plug switch IP54 with phase changer
- mounted on the cross arm:
  1 lever switch IP67, each, to switch off the
  agitators after opening of the covers

1 agitator eccentrically on a st.st. cross arm:

- voltage:



400

 V

- power:



0,75

 kW

- speed:



1.390

 rpm

- stirrer:  3-blades-propeller Ø appr. 150 mm

PRICE / piece:

€

3.985,--



Prices: ex stock Bremen, packing excl., tax excl.
