Sku 10104

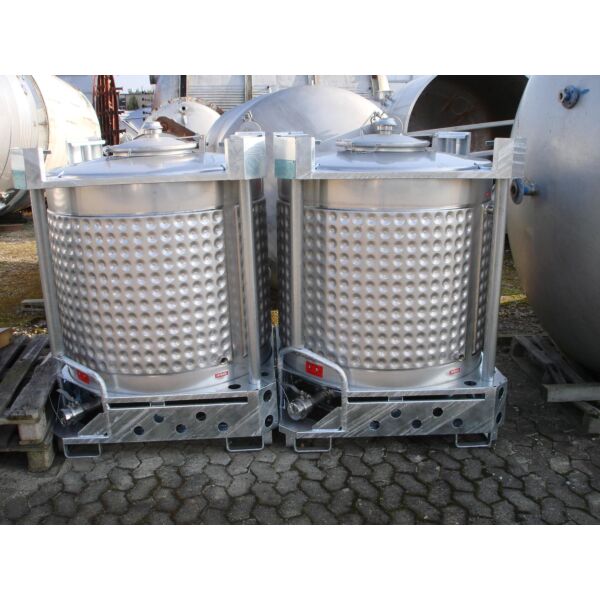

Brand new 1023 liter heat-/coolable stainless steel container, AISI 304

€3,390.00 €4,034.10  incl. VAT
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
1.000 liter
lower bottom
cone shaped bottom
construction
container
stand type
cage
double jacket
double jacket
available
Volume double jacket
14,0 liter
max. allowable working temperature (dj)
95 °C
Temperature control cylinder (dj)
thermoplate
Technical Characteristics
diameter inside
1.080 mm
cylindrical height
1.000 mm
total height
1.600 mm
total width
1.120 mm
total length
1.120 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 400)
technical equipment
ventilation, ball valve
outlet
DN50 DIN 11851
remarks
welding seams are not ground
Material Composition
material in contact w/ medium
AISI304 1.4301
material double jacket
AISI304 (V2A) 1.4301
material legs
galvanized steel

4 pcs. brand new jacketed, palletised CONTAINER

- material: st.st. V2A=AISI304

- type:    PL-R 1000

- containers are placed in a transport- and stackable
   cage of mild steel, galvanized

- containers are unused

- year of construction:



2013



- inner diameter:                                     appr.

1.080

 mm

- cyl. height:                                            appr.

1.000

 mm

- ttl. height:                                              appr.

1.600

 mm

cage dimensions:

- basic dimensions:

1.120x1.120

 mm

- height:



1.485

 mm

- containers can be accessed by fork-lift or stacker
   lift-truck from all 4 sides

- volume:



1.023

 ltrs.

- double jacket (thermoplate of st.st. (V2A=AISI304) for
   heating/cooling around the biggest part of the cylinder
   (according to the manufacturer the double jackets can
   be operated up to a max. working pressure of 2,5 bar (water)
   resp. max. 0,5 bar (steam).

- the welding seams are executed by automatic
   welding process, subsequently pickled and
   passivated in- and outside
- cylinder with only one longitudinal welding seam
- lower bottom conically compressed from one
   piece with outlet bead and st.st. ball-valve
   DN 50 DIN 11851, external thread and st.st. cap
- upper bottom incl. manhole hoop compressed from one piece
- manhole DN 400, with hinged cover, hinge,
   handle and quick locking
- 1 nozzle DN 50, DIN 11851 with double-acting
   safety valve and st. st. cap on the manhole cover

PRICE/piece:

2.350,--



Prices: ex stock Bremen, packing excl., tax excl.
