Sku B0059

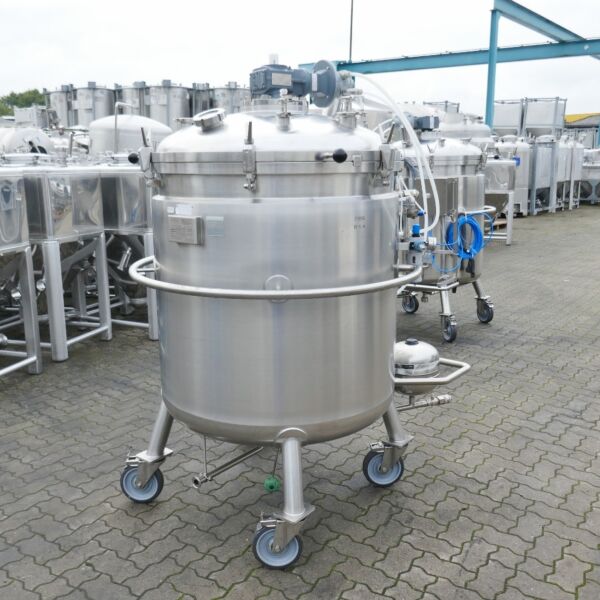

956 liter mobile, heatable/coolable agitator tank made of stainless steel 316 with cup agitator
Price on request
Price per piece, excl. VAT
2 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Pharma-Planung u. Anlagenbau GmbH
location
Bremen
Vessel
volume
956 liter
vacuum
0.5 bar
upper bottom
upper bottom removable / hinged
construction
standing
stand type
moveable on wheels
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
83,0 liter
max. allowable working overpressure (dj)
1.5 bar
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
1.000 mm
diameter outside
1.050 mm
cylindrical height
950 mm
total height
2.000 mm
wall thickness bottom
5 mm
wall thickness cylinder
5 mm
year of construction
2011
Equipment
Technical documentation
drawing,CE label and declaration of conformity,operation manual
nameplate
outlet
25 mm
remarks
Technical documentation (also for the agitator) available for one of the two vessels
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
manufacturer stirrer
Inotec GmbH
output speed
24 - 247 rpm
agitator
cup stirrer
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
agitator positioning
centrically in the upper bottom
agitator features
Air geared motor
