Sku 9815

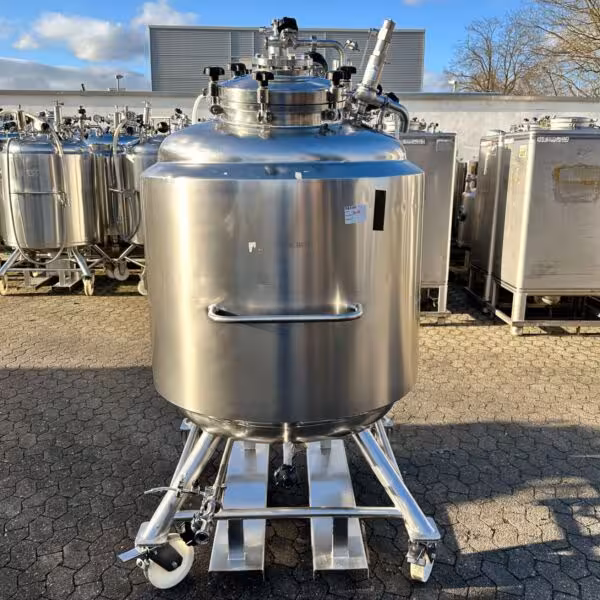

900 liter heat-/coolable pressure tank, Aisi 316
€7,000.00 €8,330.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
location
Bremen
condition
used
Vessel
volume
900 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
150 °C
lower bottom
torispherical bottom
upper bottom
torispherical bottom
construction
standing
stand type
moveable on wheels
double jacket
double jacket
available
Volume double jacket
54,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
980 mm
cylindrical height
850 mm
total height
2.300 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 450)
nameplate
technical equipment
spray ball
outlet
DN25 DIN 11851
remarks
Filling pipe including spray head inside the tank (see pictures); GEMÜ diaphragm valve at the outlet
latest application
pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material double jacket
AISI 304 1.4301
