9087

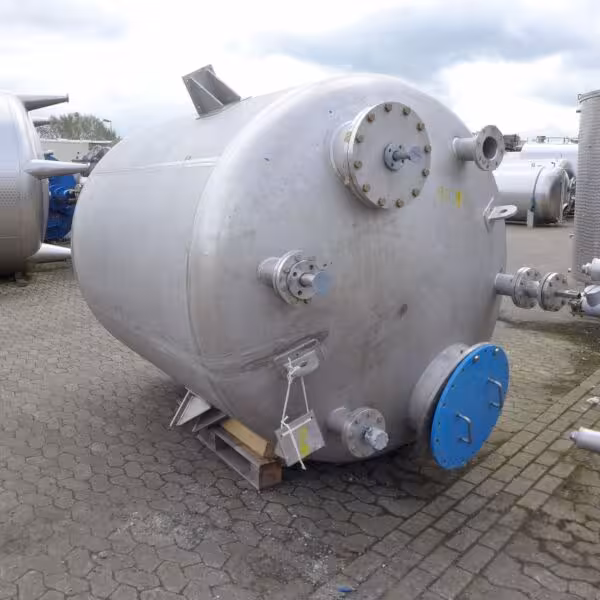

8380 liter pressure tank, Aisi 316
€9,750.00
incl. VAT
€11,602.50
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Hersteller
Metkon AG
location
Bremen
condition
used
Vessel
volume
8.380 liter
vacuum
1,0 bar
max. excess pressure
2,0 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
bracket
Technical Characteristics
diameter inside
2.000 mm
cylindrical height
2.120 mm
total height
3.600 mm
Wall thickness lower bottom
5.9 mm
wall thickness cylinder
7 mm
wall thickness of upper bottom
8.8 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
95 mm
notice
manhole cover plated
remarks
3 support brackets, Aisi 304 (1 support bracket was cut off during disassembly and is enclosed loose); more technical documents available
latest application
Pharmaceutical Chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
