Sku B0136

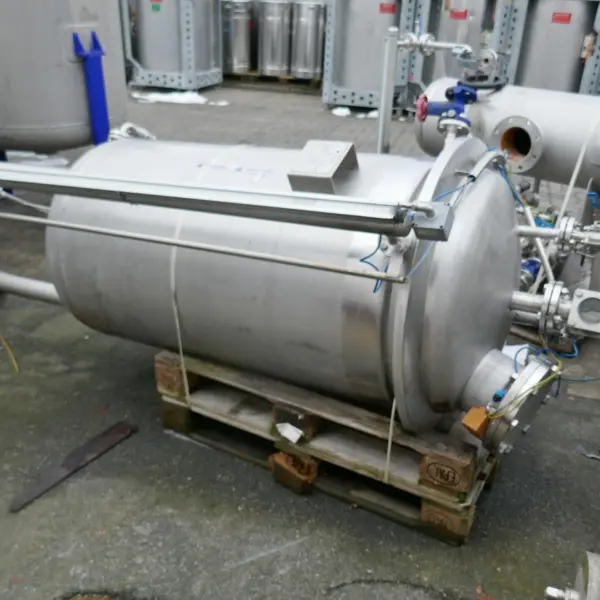

820 liter heatable/coolable stainless steel 316 vessel
€4,500.00 €5,355.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
ZÜRCHER AG
location
Bremen
condition
used
Vessel
volume
820 liter
vacuum
1,0 bar
max. excess pressure
0.5 bar
max. allowable working temperature
160 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
52,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
160 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
780 mm
diameter outside
830 mm
cylindrical height
1.400 mm
total height
3.000 mm
Equipment
manhole
handhole
nameplate
technical equipment
level indicator (without guarantee)
outlet
flange DN50
notice
some residues of previous content
remarks
1 DN 200 hand hole in the upper bottom; 1 welded stainless steel insulating collar around the outside of the vessel
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
material temperatur control system
AISI 316 (V4A) 1.4571
material legs
stainless steel
