8850

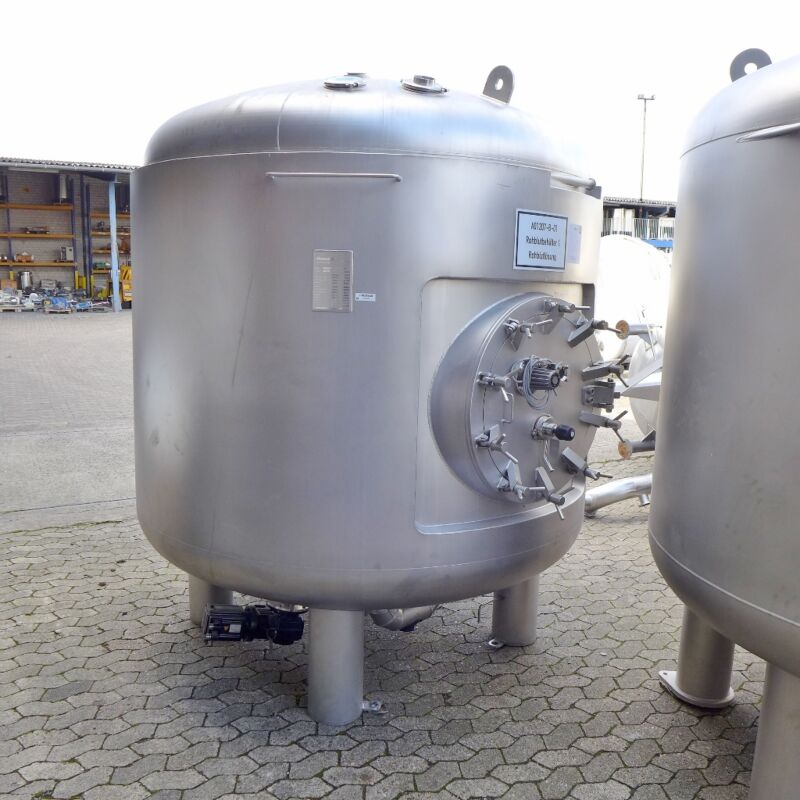

6000 Liter heat-/coolable pressure tank, Aisi 316 with magnetic agitator
€29,500.00
incl. VAT
€35,105.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
Möschle
location
Bremen
condition
used
Vessel
volume
6.000 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
135 °C
construction
standing
stand type
legs
quantity legs
4 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
135 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
Armaflex
material insulation jacket
stainless steel
insulation thickness
50 mm
Technical Characteristics
diameter inside
2.000 mm
diameter outside
2.100 mm
cylindrical height
1.400 mm
total height
2.630 mm
Wall thickness lower bottom
6 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
5.8 mm
year of construction
2016
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,statics,CE label and declaration of conformity,operation manual
manhole
in the cylinder
nameplate
technical equipment
crane eyes
outlet
187 mm
remarks
Manhole DN 600; Outlet with screwed fitting; No reference to the acceptance of the double jacket in the test report on the acceptance (in a copy of drawing 1160246-1A or 1B there is the signed stamp "Tested according to AD 2000 rules from TÜV Süd); Parts of the blind screw connections may be present
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
output speed
495 rpm
agitator
magnetic mixer
voltage
400 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
lower bottom
