Sku 9929

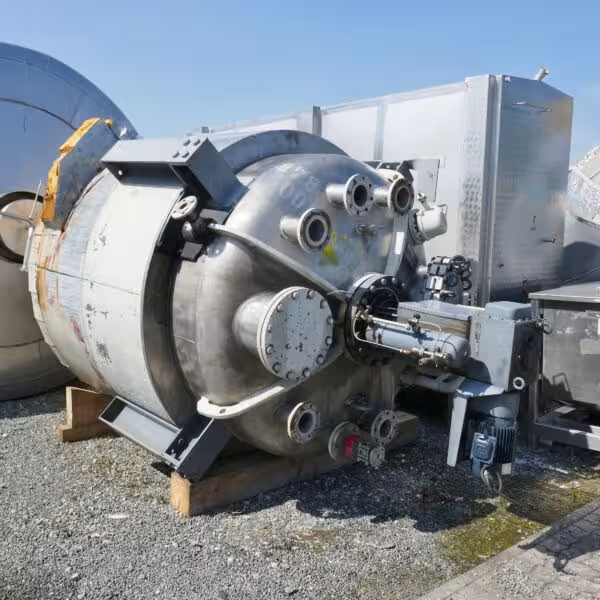

5850 liter heat-/coolable pressure vessel, Aisi 316 with blades agitator
€13,800.00 €16,422.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Kleiser und Lösch
location
Bremen
condition
used
Vessel
volume
5.650 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
bracket
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
166,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Insulation
insulation
available
insulating jacket
screwed
Insulation material
PU - foam
material insulation jacket
mild steel galvanized
Technical Characteristics
diameter inside
1.800 mm
diameter outside
2.100 mm
total height
3.750 mm
Equipment
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
140 mm
remarks
Support brackets, Fe; insulation jacket has partially come loose in the area of the lower bottom (see photos)
latest application
Pharmaceutical Chemistry
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
material temperatur control system
AISI 304 (V2A) 1.4301
Agitator
power
2 KW
output speed
55.8 rpm
agitator
blade agitator
stirrer seal
mechanical seal with thermosyphon
voltage
220/380 Volt
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
agitator positioning
centrically in the upper bottom
agitator features
Devices for baffles inside the vessel (flat plates of the baffles are not present; see photos)
