Italian Sku 8121

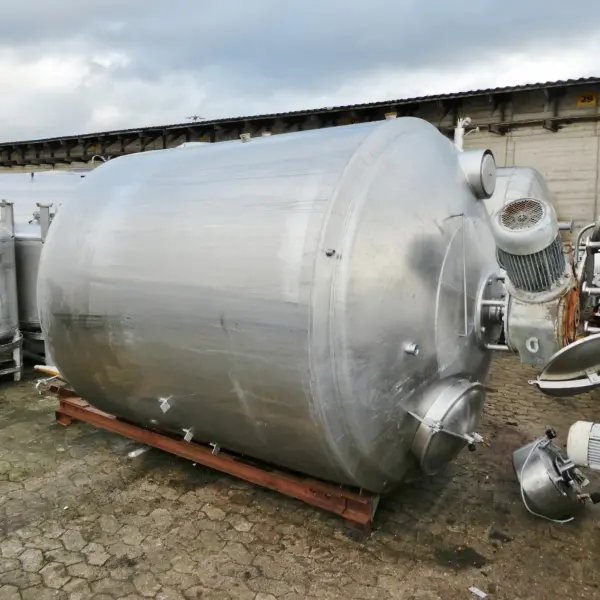

5000 liter heat-/coolable tank, Aisi 304
€6,650.00
€7,913.50 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
Bremen
condition
used
Vessel
volume
5.000 liter
lower bottom
flat bottom with slope
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.880 mm
diameter outside
2.030 mm
cylindrical height
1.850 mm
total height
3.700 mm
Equipment
manhole
in the upper bottom (Ø 500)
technical equipment
ventilation, spray ball
outlet
available
remarks
Insulation cover of the lower bottom partly made of Fe (see photos); 1 strong dent in the insulation jacket
latest application
Dairy
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
2.6 / 4.4 KW
output speed
6.8 / 14 rpm
agitator
blade agitator
voltage
380 Volt
floor bearing
agitator positioning
centrically in the upper bottom
agitator features
Motor / gear unit with signs of corrosion
