Item no. 8890

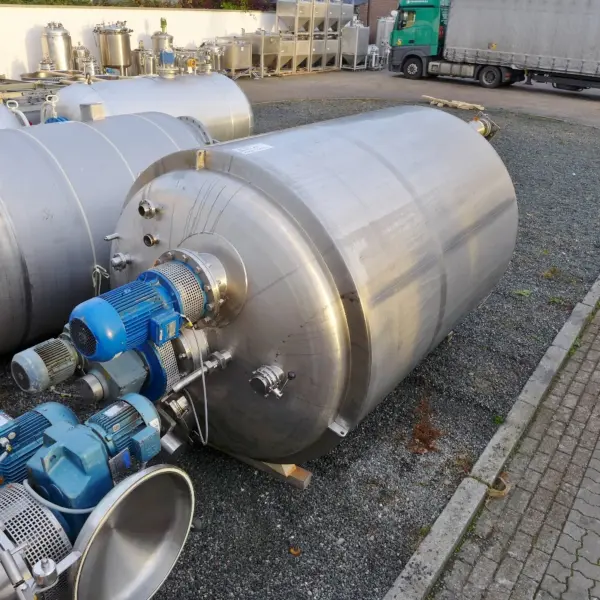

5000 liter heat-/coolable agitator tank, Aisi 316 with 2 agitators
€16,500.00 €19,635.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
Bremen
condition
used
Vessel
volume
5.000 liter
construction
standing
support type
legs
quantity legs
4 pieces
double jacket
heating/cooling
available
Volume double jacket
102,0 liter
max. allowable working overpressure (dj)
4.0 bar
temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulation jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.600 mm
diameter outside
1.870 mm
cylindrical height
2.150 mm
total height
4.100 mm
Equipment
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
spray ball
outlet
48 mm
notice
some residues of previous content
remarks
Heating coil around the outside of the lower cylinder area; 3 of the feet are fitted with load cells (no guarantee of functionality); the load cell is missing on one foot
latest application
Food industry
Material Composition
material in contact w/ medium
AISI 316 1.4401 / 1.4404
material temperatur control system
AISI 304 1.4301
material legs
stainless steel
Agitator
manufacturer stirrer
agitator
anchor agitator
voltage
220/380 Volt
agitator positioning
centrically in the upper bottom
agitator features
Agitator data on the anchor agitator is not clearly legible; dent in the fan housing of the propeller agitator; no nameplate on the propeller agitator
Second Agitator
manufacturer stirrer
Jongia
agitator
propeller
agitator positioning
eccentrically in the upper bottom
