Sku 9752

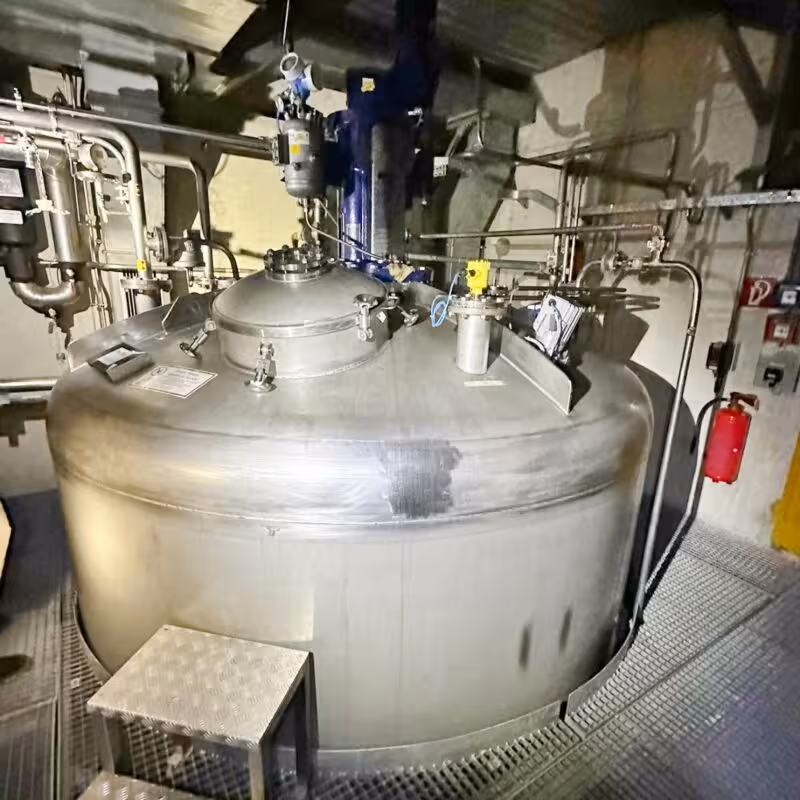

43500 liter mixing tank, Aisi 316 with inclined blade agitator
€31,500.00
€37,485.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Hinke
location
6250 Kundl, Austria
condition
used
Vessel
volume
43.500 liter
vacuum
0,25 bar
max. excess pressure
1,0 bar
max. allowable working temperature
100 °C
bottom
torispherical bottom
construction
standing
stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
2.990 mm
cylindrical height
5.350 mm
total height
7.000 mm
Wall thickness lower bottom
8 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
6 mm
Equipment
Technical documentation
drawing,various documents
manhole
in the cylinder, in the upper bottom (Ø 600)
nameplate
technical equipment
spray ball, crane eyes
outlet
flange DN100
remarks
cylinder manhole diameter: 600 mm; indication of total height without geared agitator motor
latest application
mother liquor
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
Agitator
manufacturer stirrer
Ekato
power
3.6 KW
agitator
cross blade stirrer
