8809

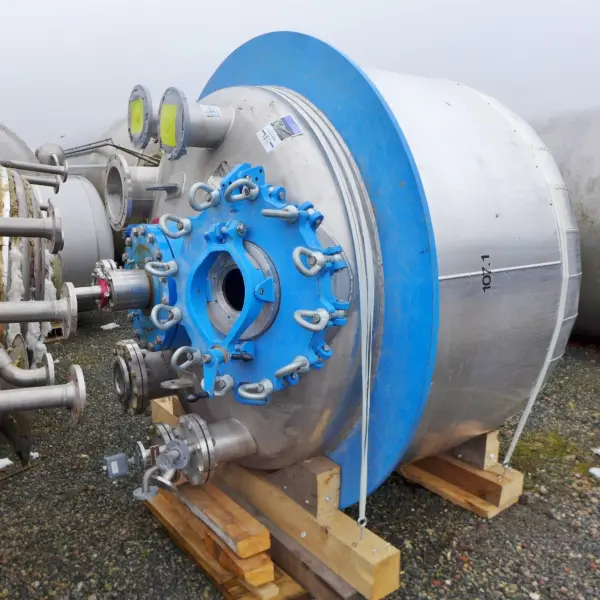

3860 liter reactor with blade stirrer, AISI316
€20,500.00
incl. VAT
€24,395.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
used
Vessel
volume
3.860 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
ring
double jacket
double jacket
available
Volume double jacket
136,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Insulation
insulation
available
insulating jacket
riveted
material insulation jacket
aluminium
Technical Characteristics
diameter inside
1.800 mm
diameter outside
2.090 mm
total height
3.050 mm
Wall thickness lower bottom
5.17 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
8.14 mm
Equipment
Technical documentation
drawing,various documents
manhole
in the upper bottom (Ø 600)
nameplate
technical equipment
crane eyes
outlet
available
notice
bump at the insulation jacket, manhole cover plated
remarks
Support ring, Fe; Manhole cover incomplete (see photos)
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
material temperatur control system
AISI 304 (V2A) 1.4306
Agitator
power
4 KW
output speed
61 rpm
agitator
blade agitator
voltage
400/690 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
centrically in the upper bottom
agitator features
Gear housing slightly damaged in one place (see photos)
